Shown on this page are views of working ¾" to 1'-0" [1/16th] scale models which are approximately
25" long, 11" high and 5" wide.
Larger tram models require an engineering skill set to produce the level of detail required.
Select F11 first for best viewing experince; press F11 afterwards
Page 2 of 1/16th models
|

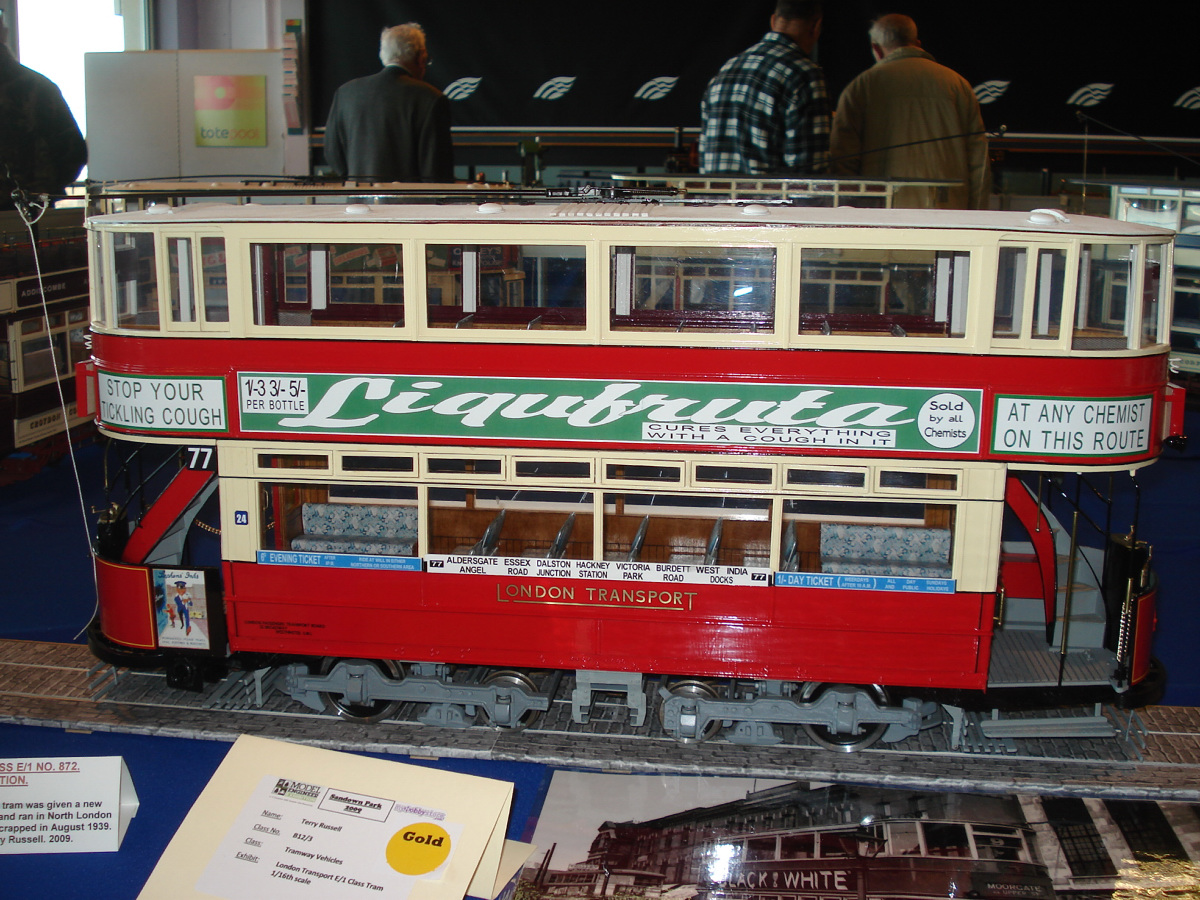

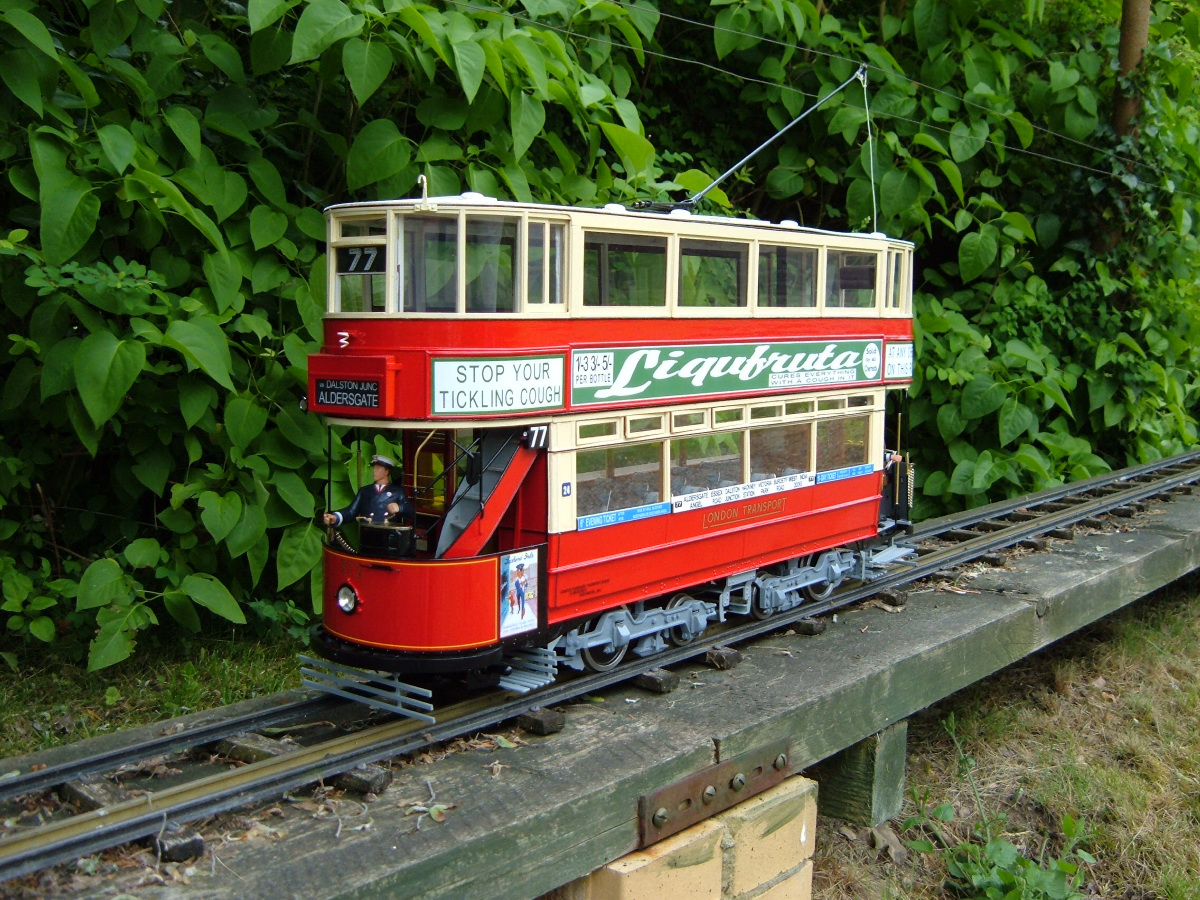

London E1 tramcar
A Model Engineer Gold Medal winner With computer generated adverts |
London E1 tramcar
A Model Engineer Gold Medal winner ME coughs up a Gold Medal! |

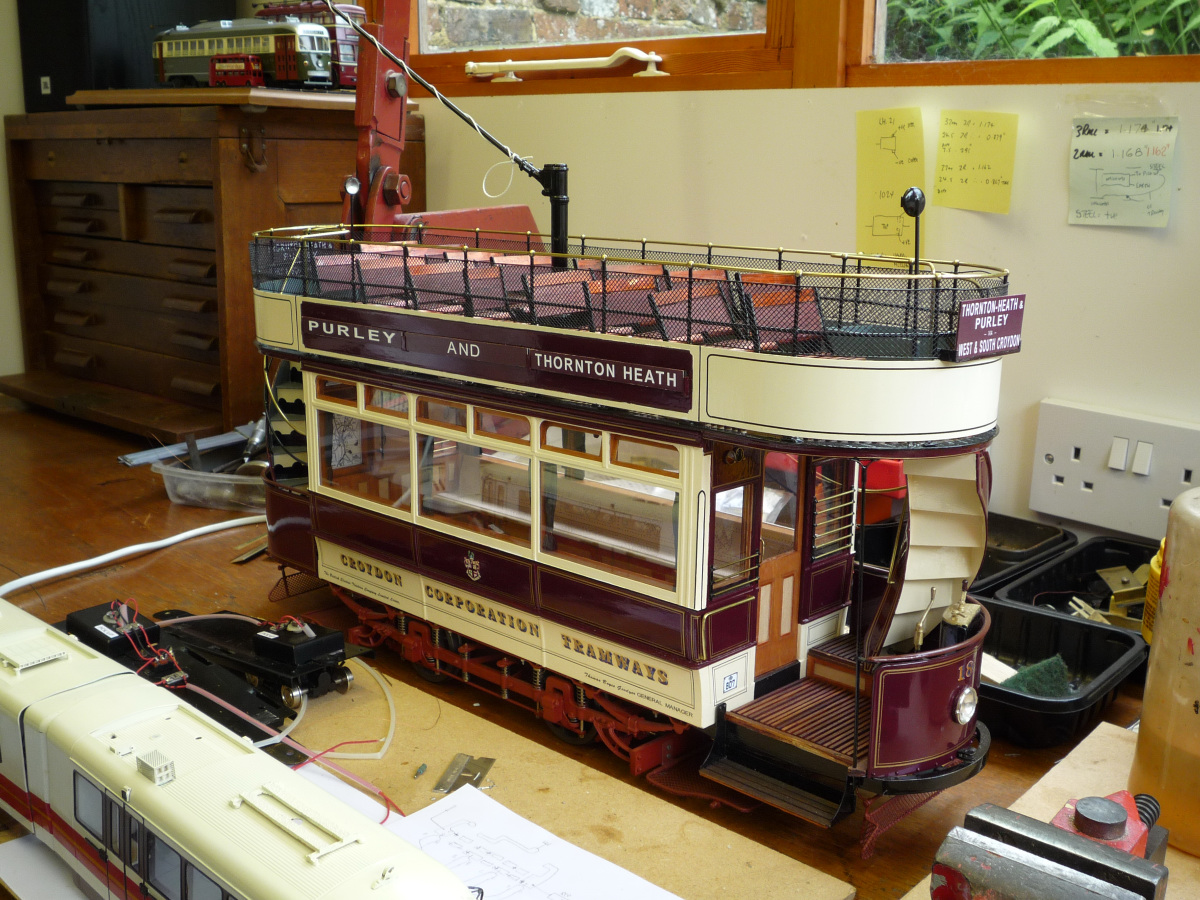

Croydon Corporation Tramways
No.18 - A 1902 Milnes built car that ran until 1927 seen on my workbench under construction. |

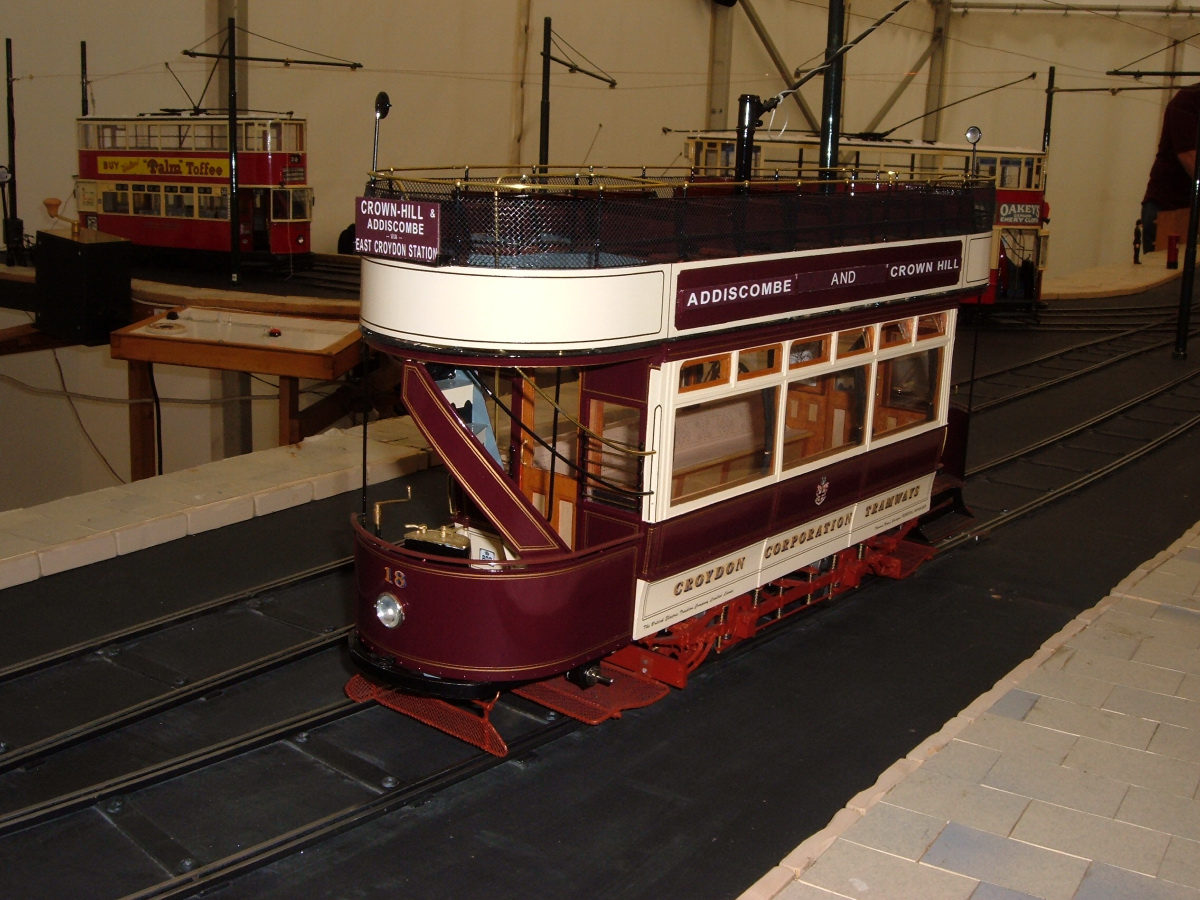

Croydon Corporation Tramways
Car No.18 in revenue earning service . . |
No.2000
My first 1/16th scale car 2000 built in Millennium year. This shot has a touch of Kingsway Subway about it. |
"Rehab" HR2 No.1884

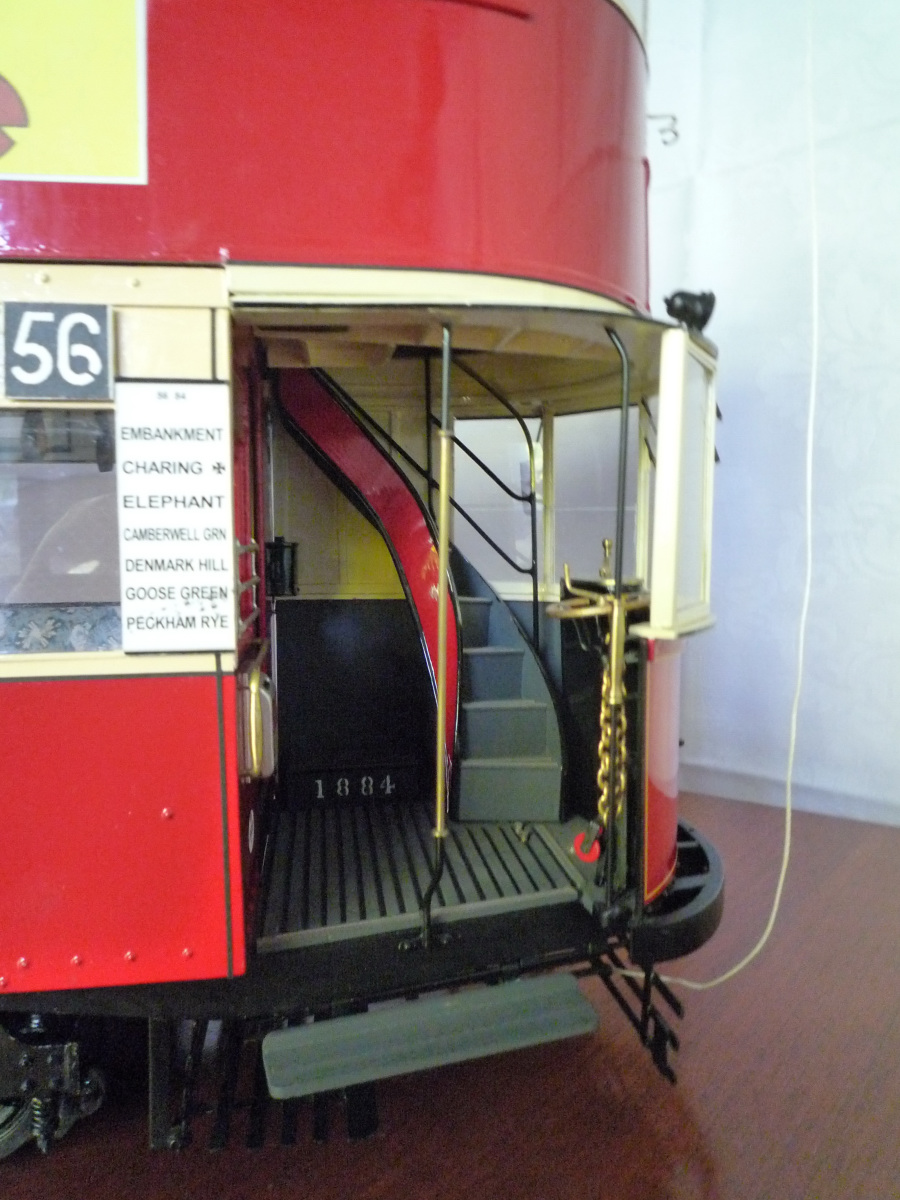

Platform view of my second "big" tram in which details can be exact |
"Rehab" HR2 No.1884

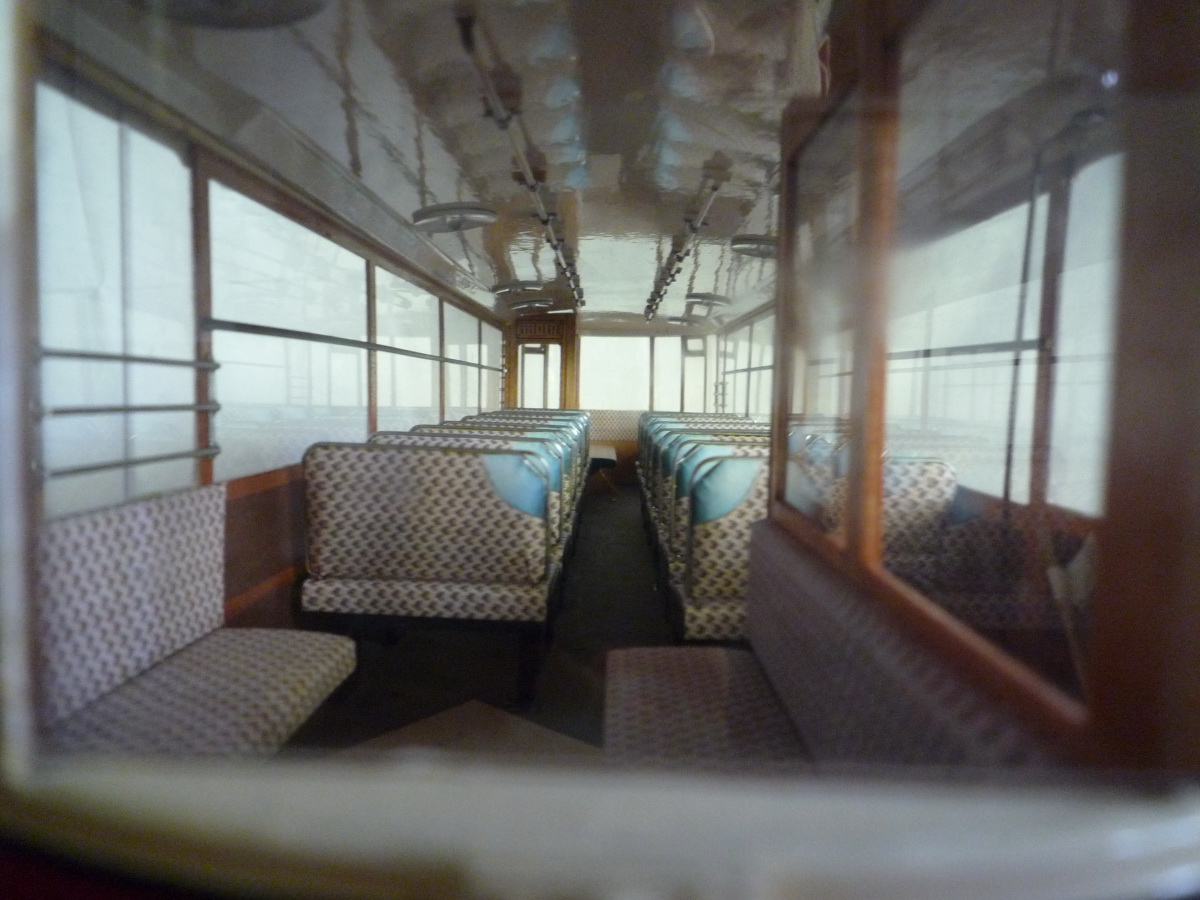

Interior shot of 1884 showing photographically produced paper upholstery on cast resin seats . . . |
"Rehab" HR2 No.1884

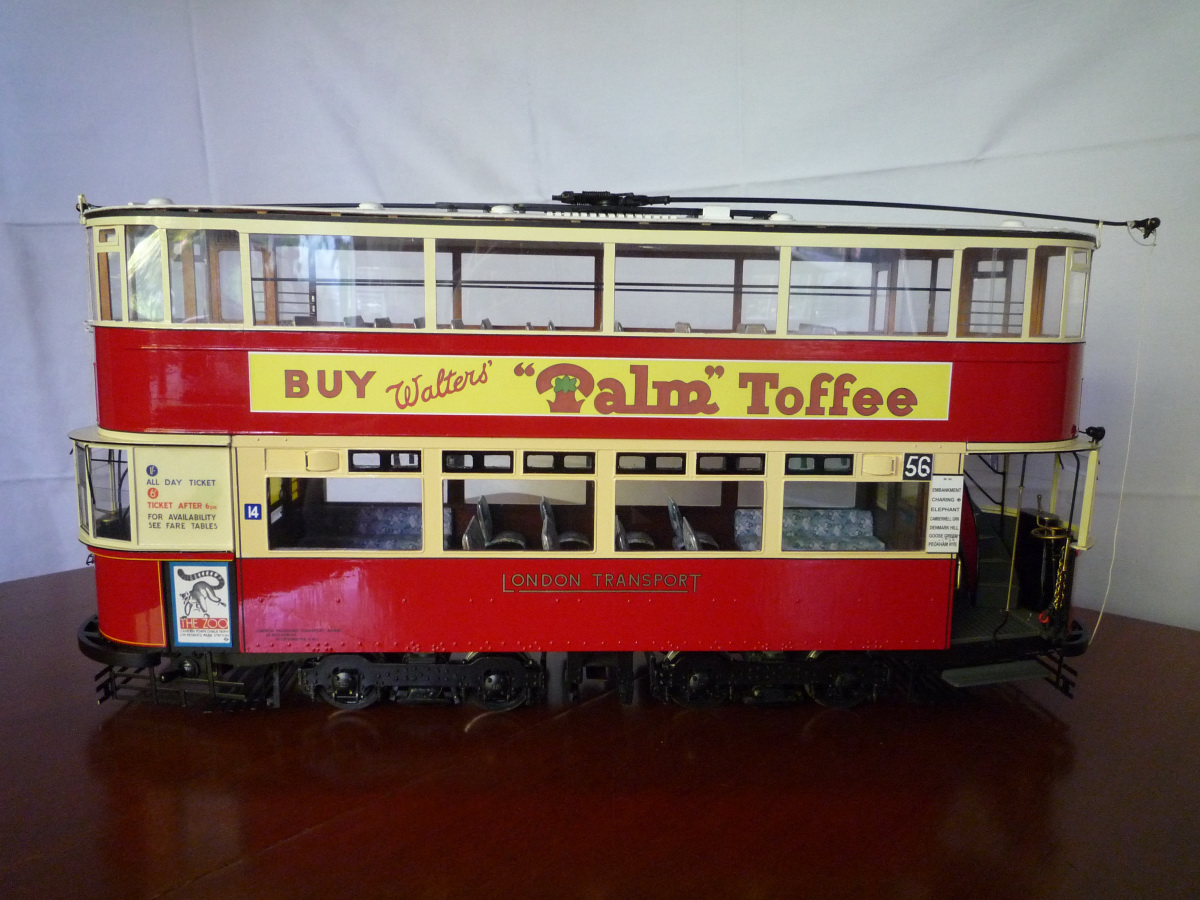

In 1938 livery with hand created advert . . . . |
"Rehab" HR2 No.1884
The driver's screen is an exact replica of the real thing as in this scale I feel it is the only way to make them . |
"Rehab" HR2 No.1884
Detail of the 24 volt DC motored trucks complete with EMB on the axle box covers! . . |

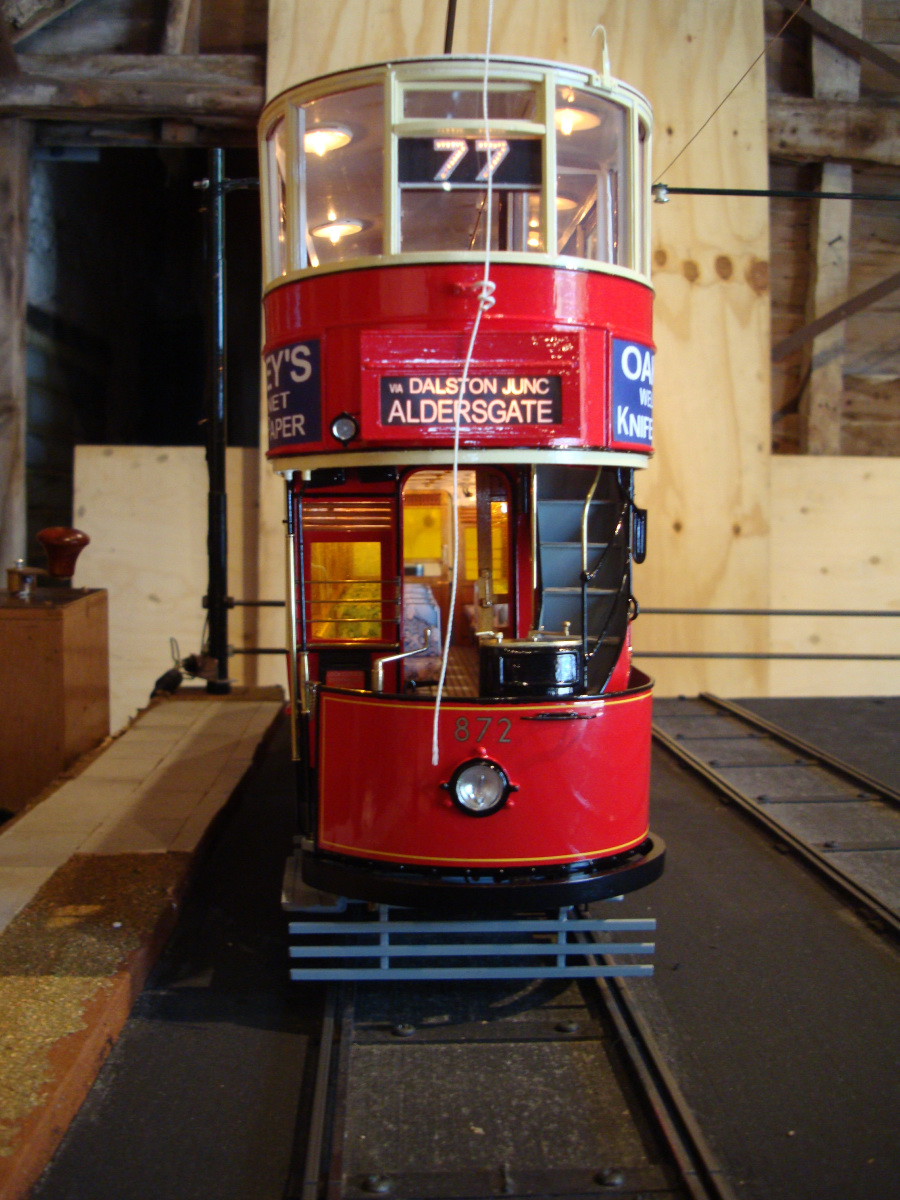

872 at Amberley
This latest car is fully lit. Simon Cole. |
I want to be a tram driver
'Star Wars' figure before the knife, card and Milliput plastic surgery |

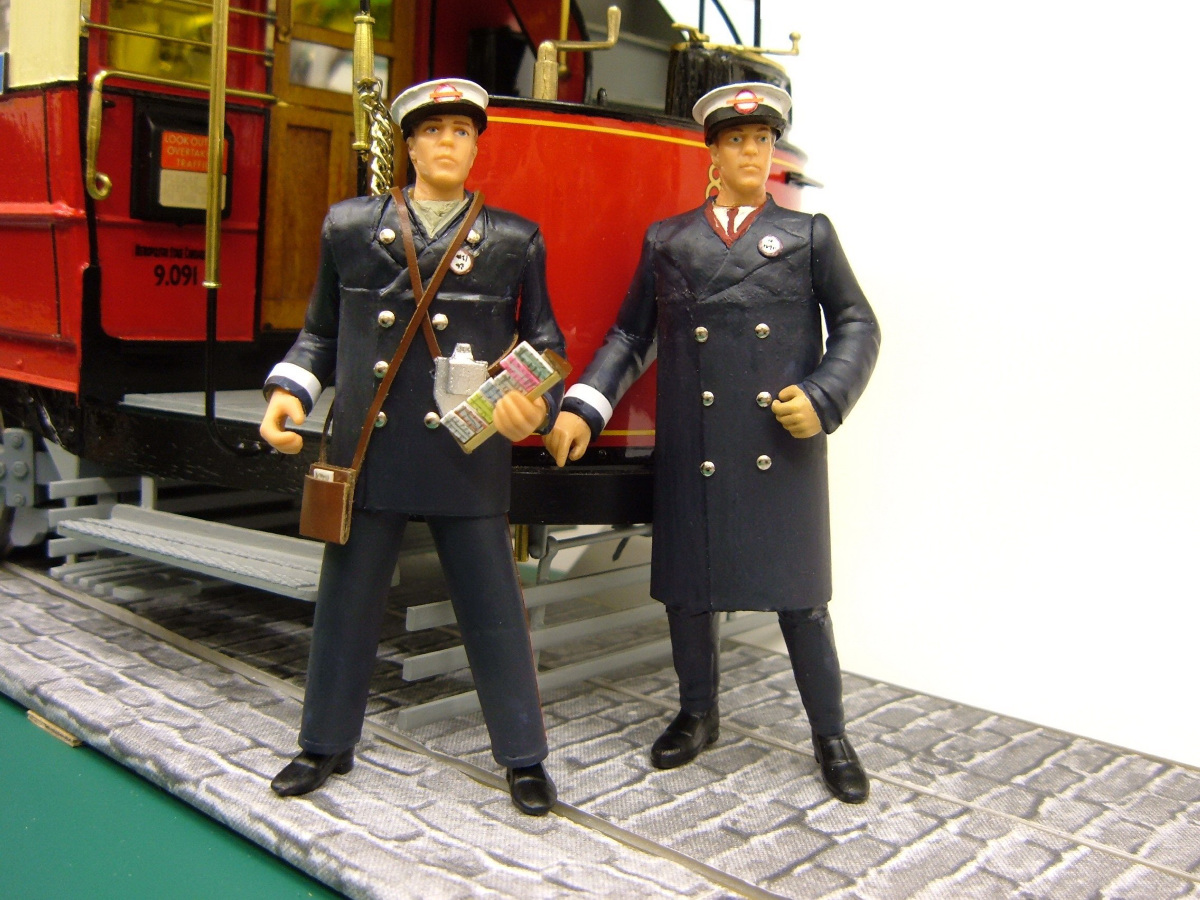

Crew change
The finished crew - I said one can go to town on detail! |

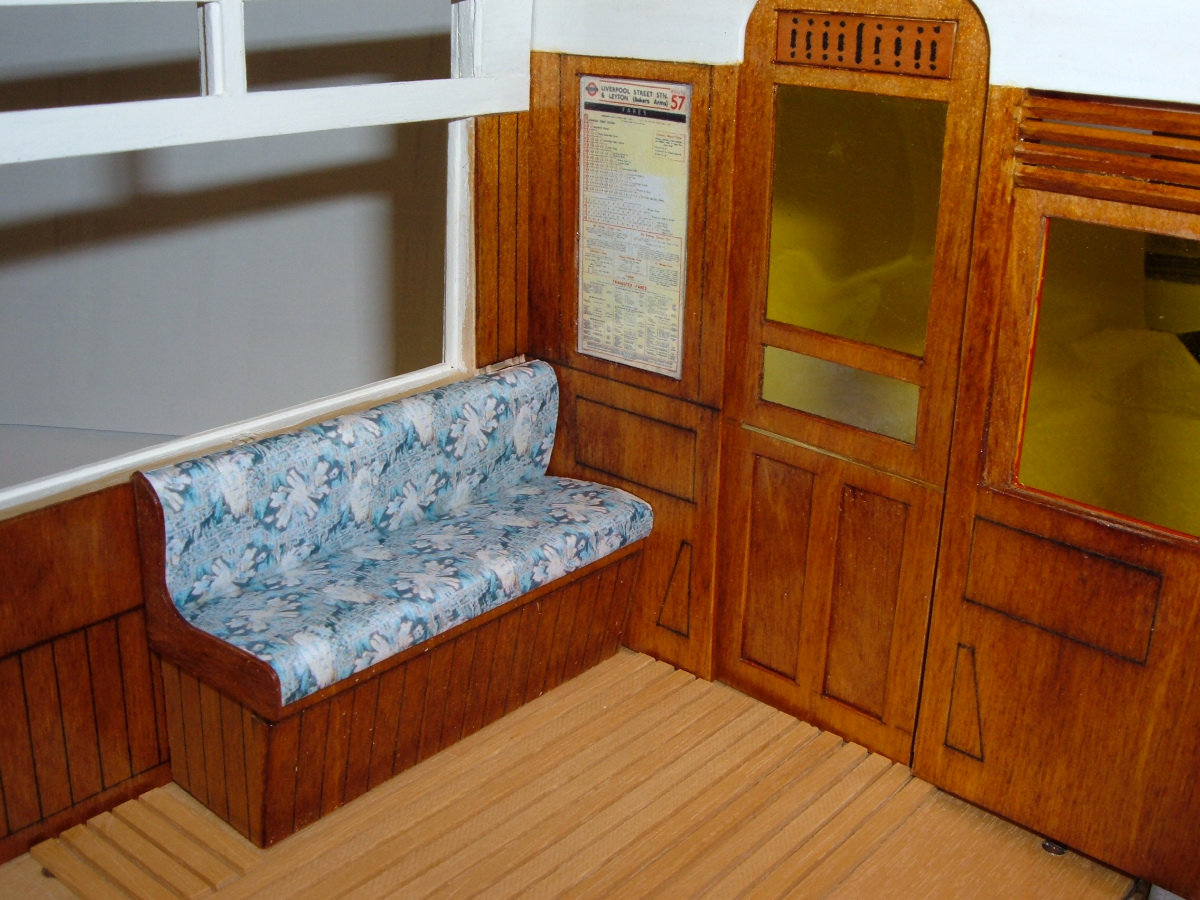

Seat and fare chart detail
The fare chart is a reduced copy of the real thing by Dave Jones! |
With my cars about to go into revenue earning service a crew was needed.
Fortunately some "Star War" characters had the right attributes and passed their initial tram driving tests.
A utility uniform was provided, and fare collection kit created within the workshop. Off to work they go. |

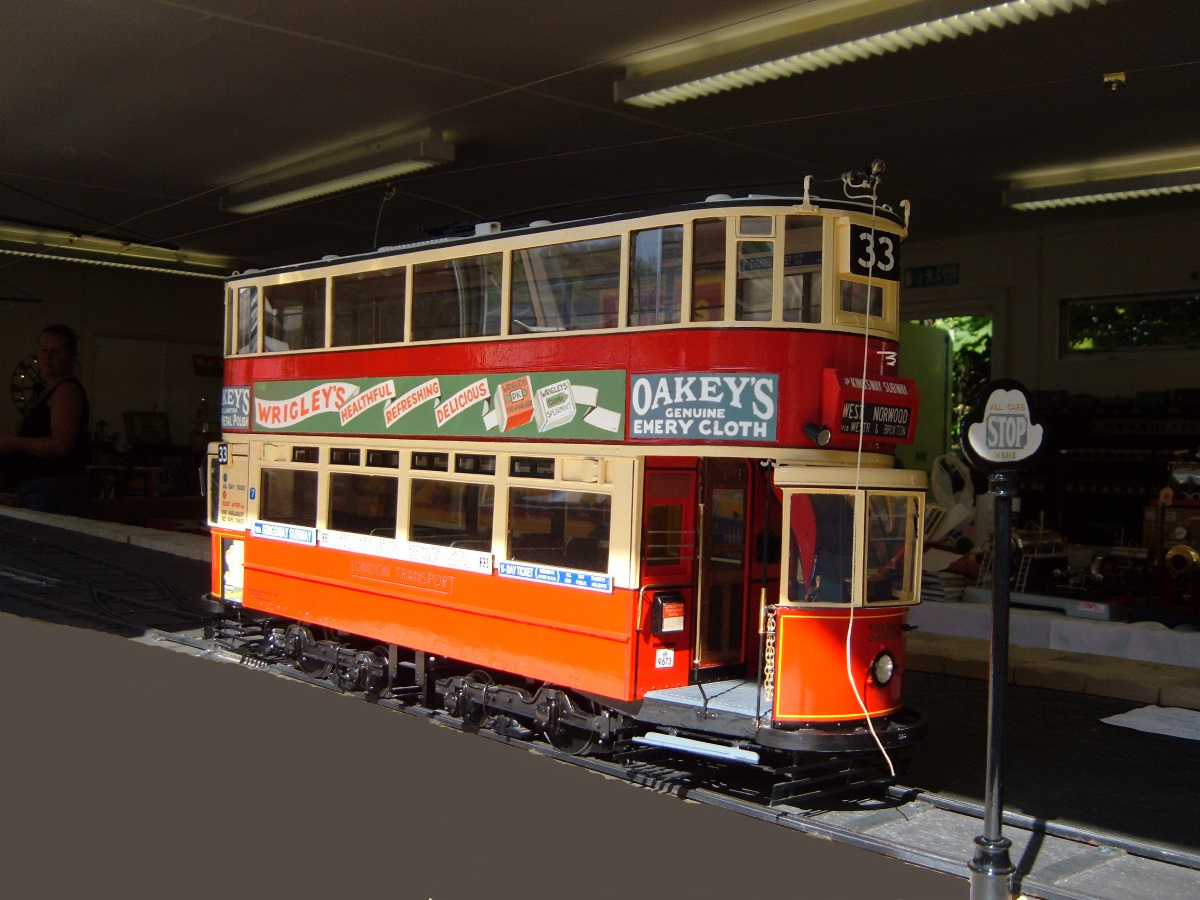

No.872 E1 and No.2000 E3
Operating on a garden line in Hampshire |

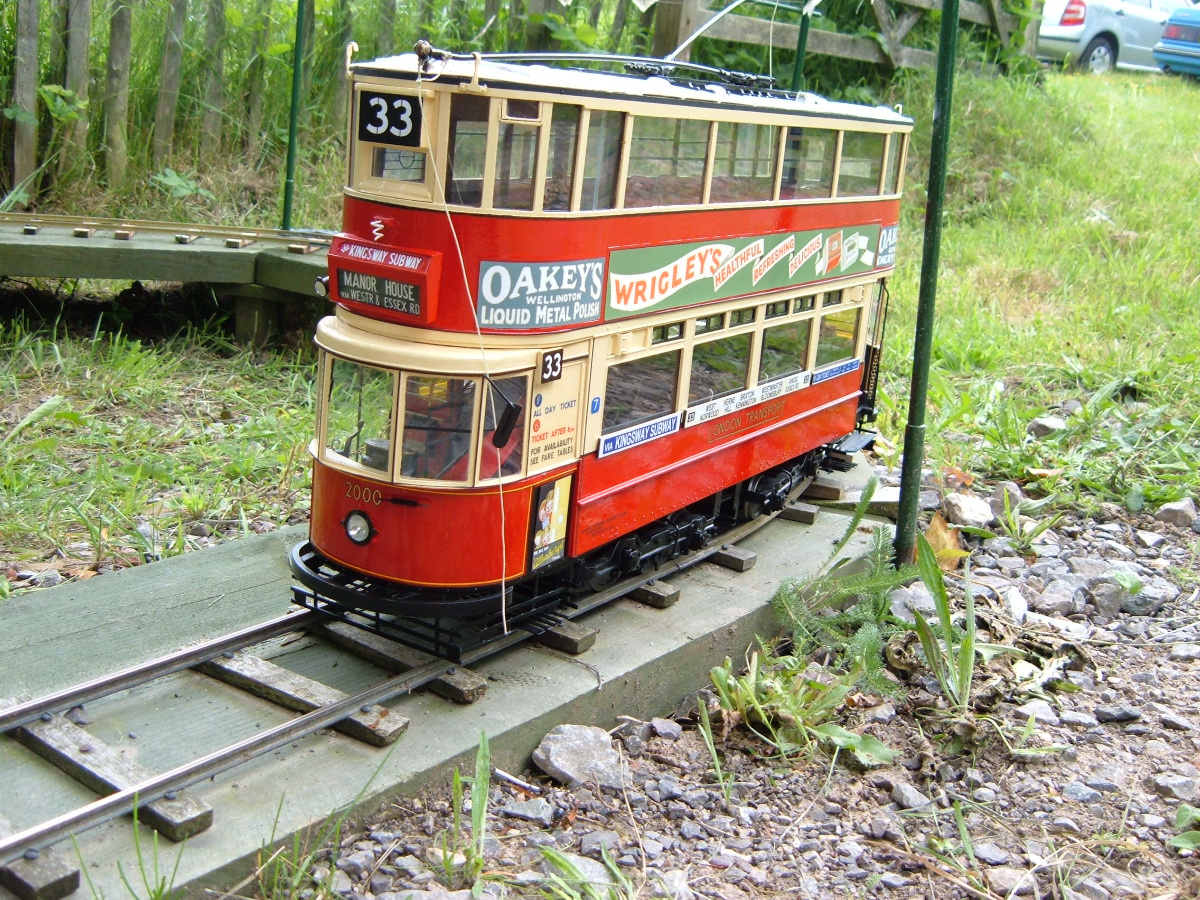

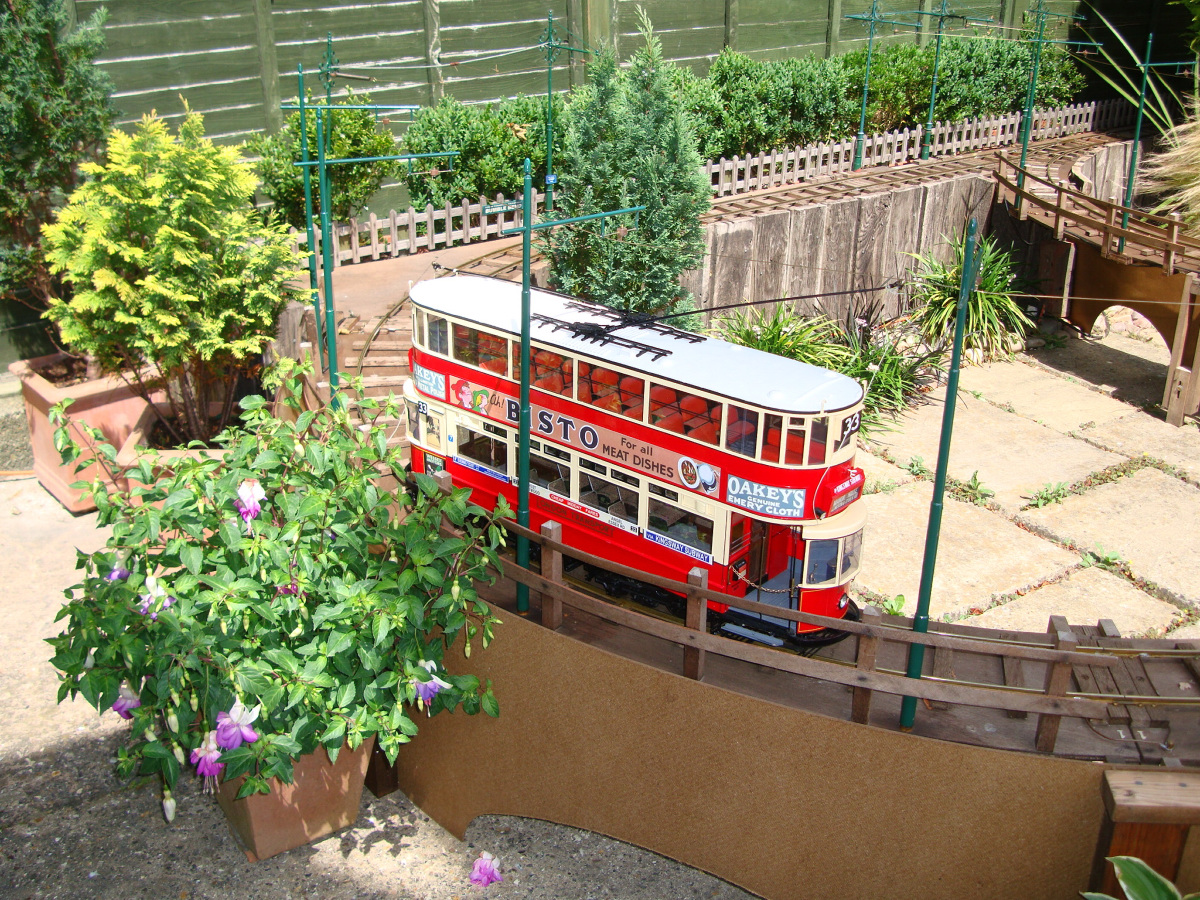

E3 car No.2000
Operating on Peter Howard's garden line in Sussex |
E3 car No.2000
Operating on John Buckle's garden line in Kent |

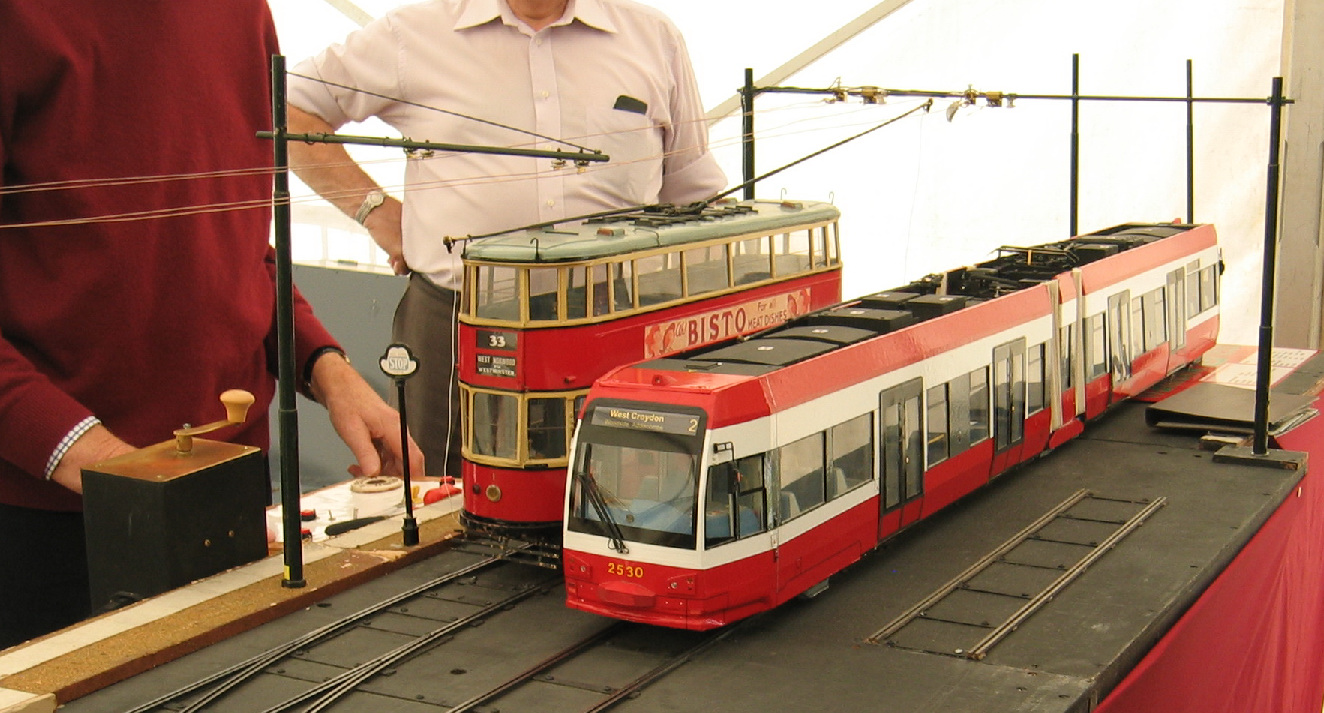

A generation apart ¶

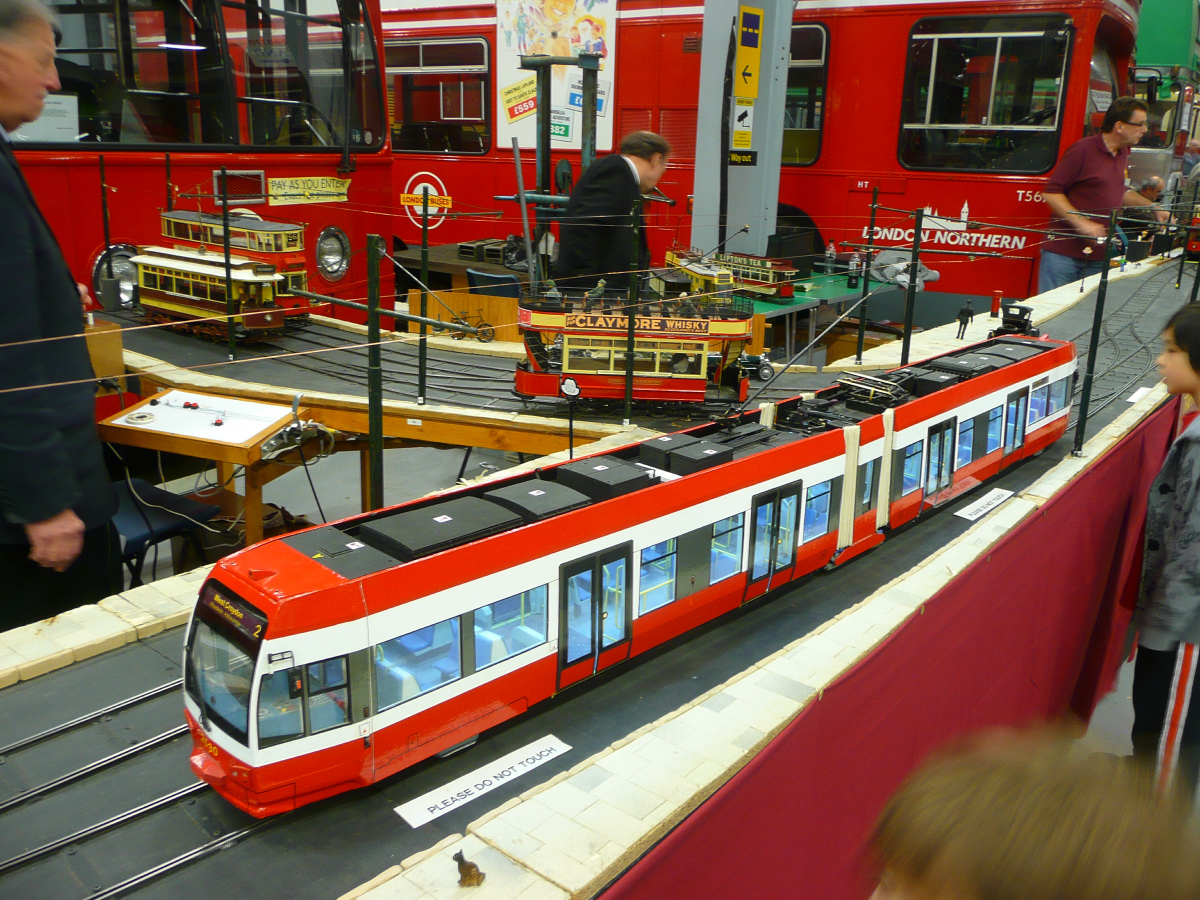

Croydon Tramlink 2530 adjacent to LCC No.1 at Kew Expo in 2011
|

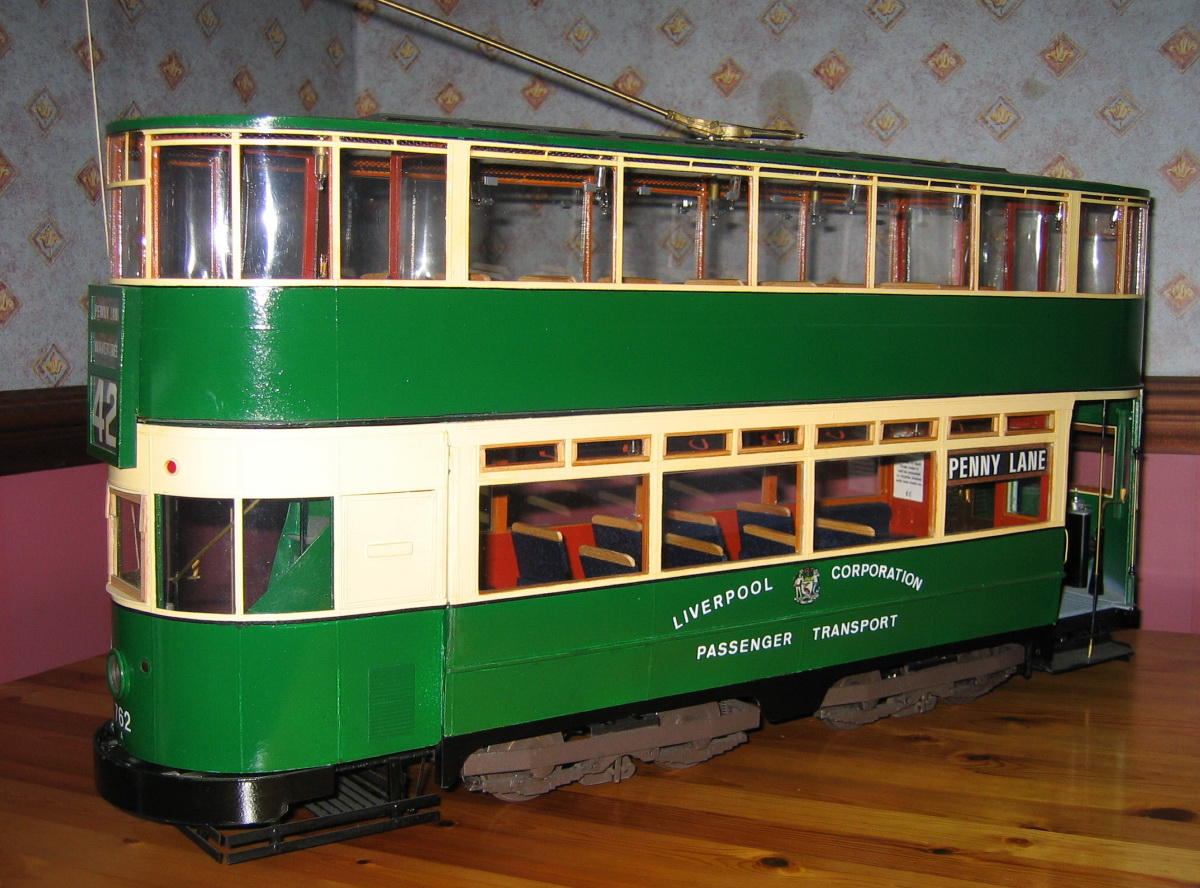

Liverpool 762
Buiilt by David Orchard in 1999 A scratchbuilt model using TRT plans |

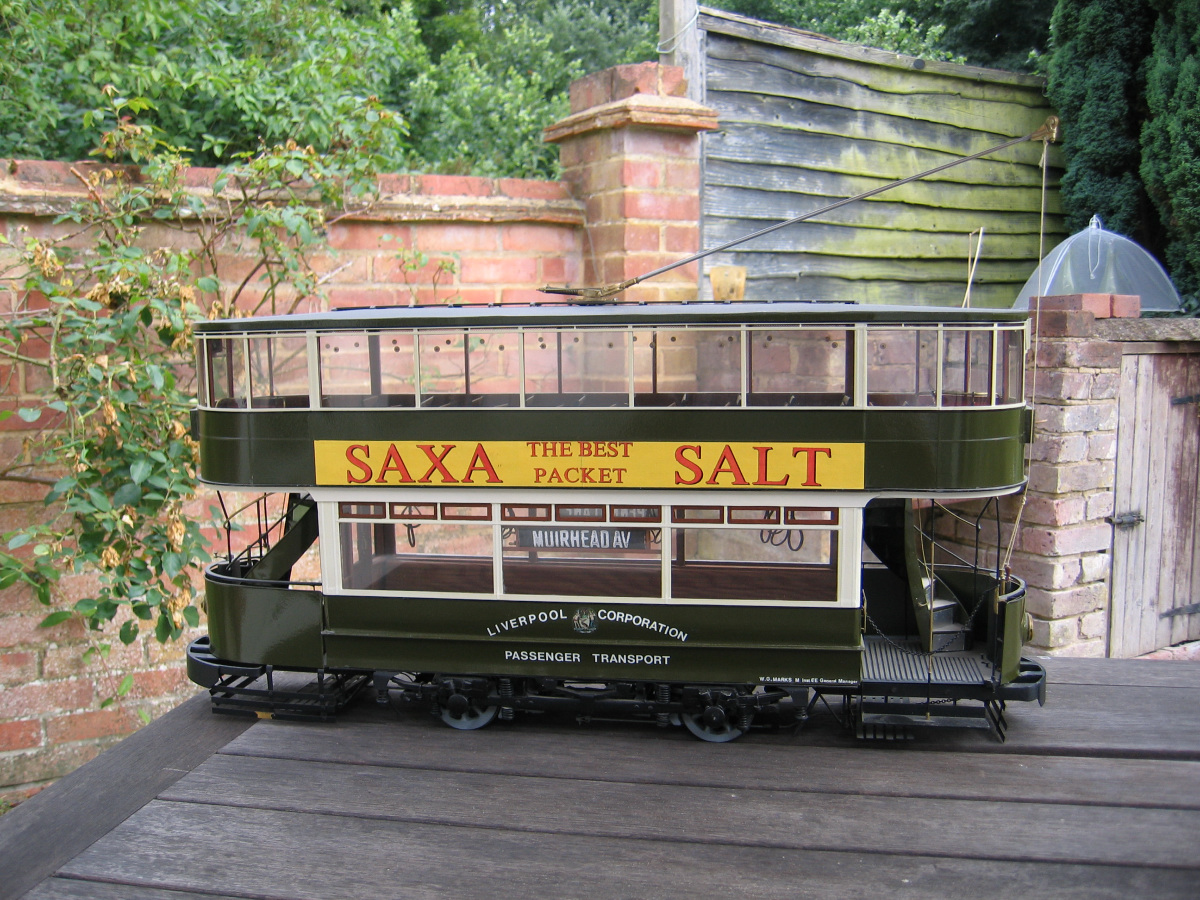

Liverpool 752
Buiilt by David Orchard Now owned by Liverpool City Museum |
¶ Original livery is normally the usual tramway modelling custom, although LCC No.1 is shown in the later post-1938 livery carried for the majority
of its service life in London. Known as 'Bluebird' when it first emerged in 1932, it sported a unique blue and ivory livery. This was lost in
early in 1938 when London Transport repainted the tram with the customary red and cream colour scheme.
Both these model tramcars were built by Tony Hildreth, with the logistics of transporting the two metre long Croydon Tramlink car between layouts
requiring the tram to being driven into its container!
The reason for the trolley-pole on Tony Hildreth's excellent 1/16 scale model of Croydon 2530 is a practical one. In 1/16 scale a working tram layout nearly
always uses temporarily-erected track
This means that the fine-scale OHL needs to be fitted from scratch, erected, aligned, and tensioned, every time the layout is used. It is relatively straightforward
to do this for trolley-pole operation, as the trolley-pole is very tolerant of OHL misalignment or wrong tensioning, and doesn't snag span-wires either.
In contrast, the pantograph is distinctly intolerant of these things, as [slightly surprisingly] is a bow-collector. So model trams in 1/16 scale have the correct
pantograph or bow-collector fitted for static display purposes, but a trolley pole for working operation. In the case of Tony Hildreth's Croydon model, when
displayed statically it is of course fitted with the correct single-arm pantograph. |

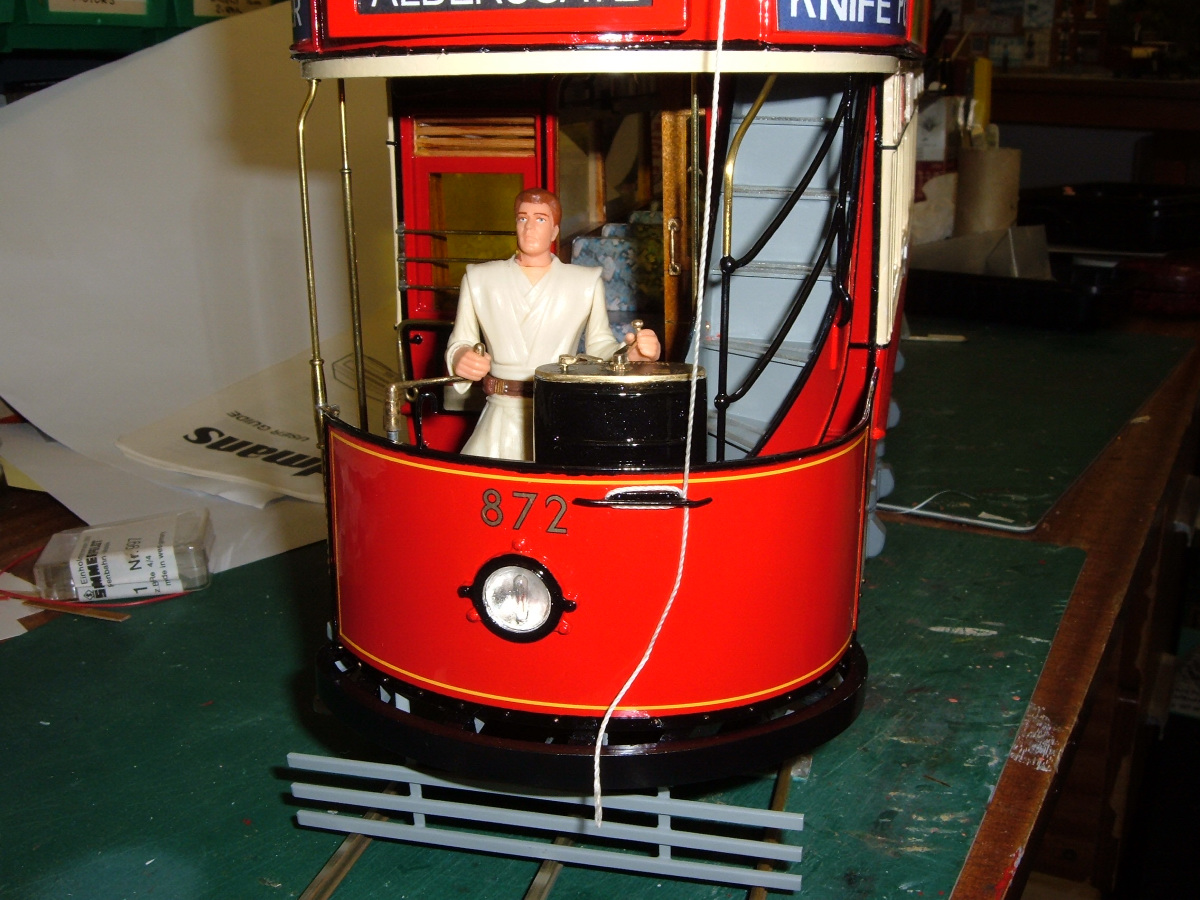

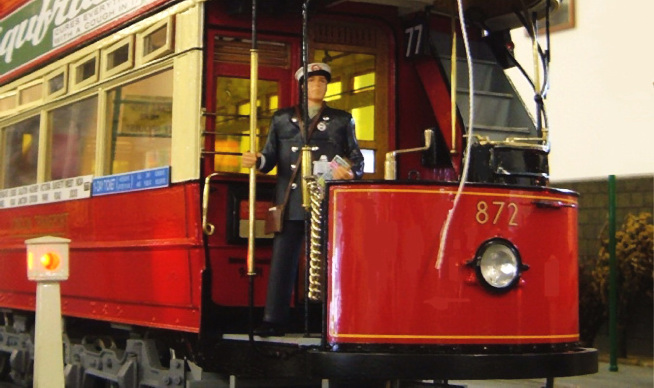

LCC E1 No.872
Platform view of my fourth "big" tram crewed by a former 'Star Wars' actor |
Occasionally I take my models to other enthusiasts' garden layouts for a Guest Running Session.
So my cars are well travelled across three counties and are racking up the mileage to the extent that a visit to Charlton Works
will come a lot earlier than expected! |
