MODEL AND OTHER NEWS [1]
latest models, updates, proposed kits, shows, exhibitions and events
Featured on this page are certain kits from 3rd party suppliers where Terry Russell Trams can provide "added value" through the supply of tram parts
and accessories.
These suppliers have a more comprehensive selection of models and other 3D printed products and it is recommended that you visit their
web sites. Hyperlinks to these sites are shown below.
Bluebird, Edinburgh, Baby Grand and E/3 at i materialise
E/1, Bluebird, E/3 and 1852 at Shapeways
Tony Heselden at Tony Heselden
PRICES SHOWN ARE SUBJECT TO CHANGE DUE TO THE EXCHANGE RATE TO THE EURO AND MANUFACTURER'S COST INCREASES

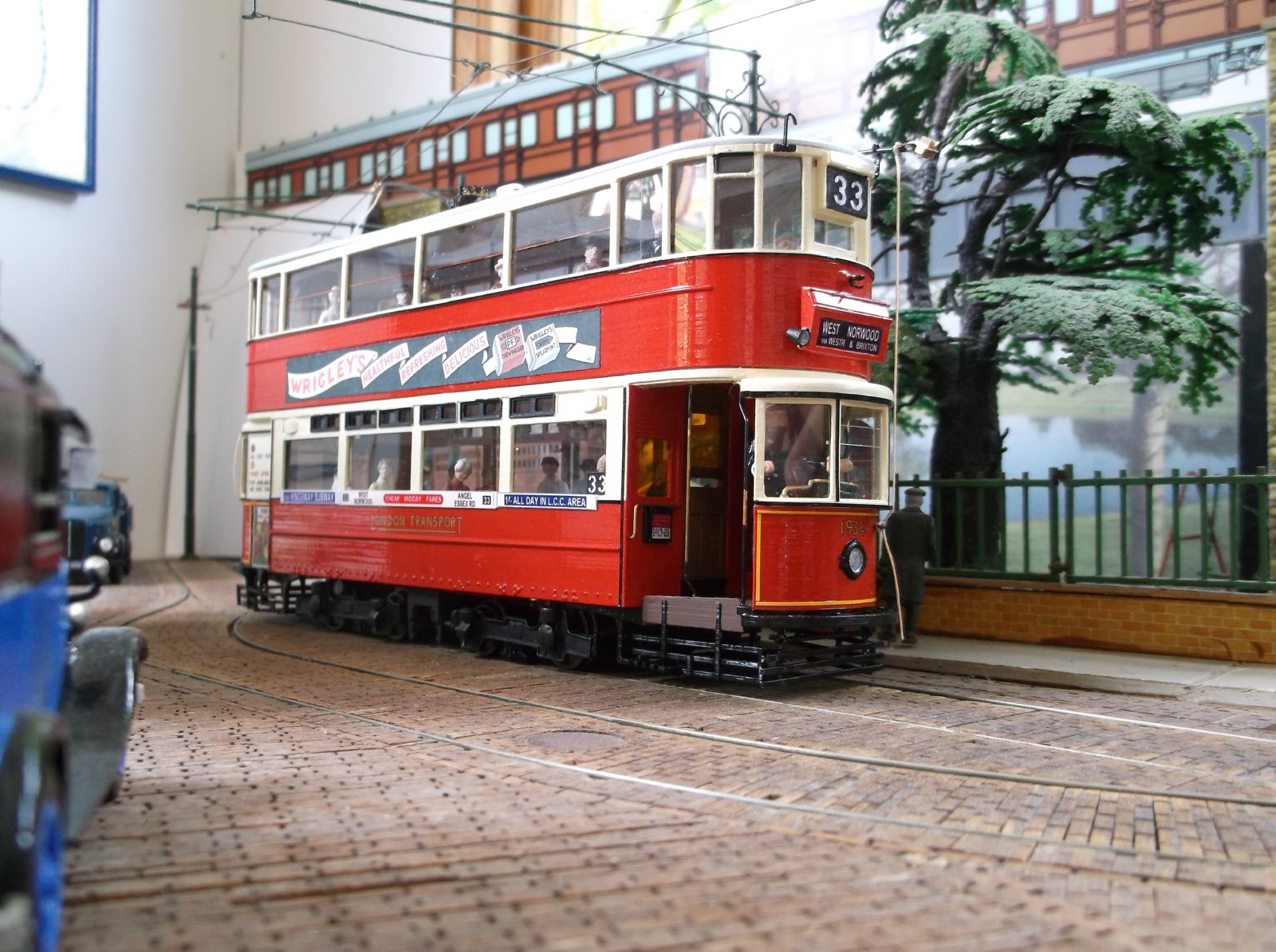

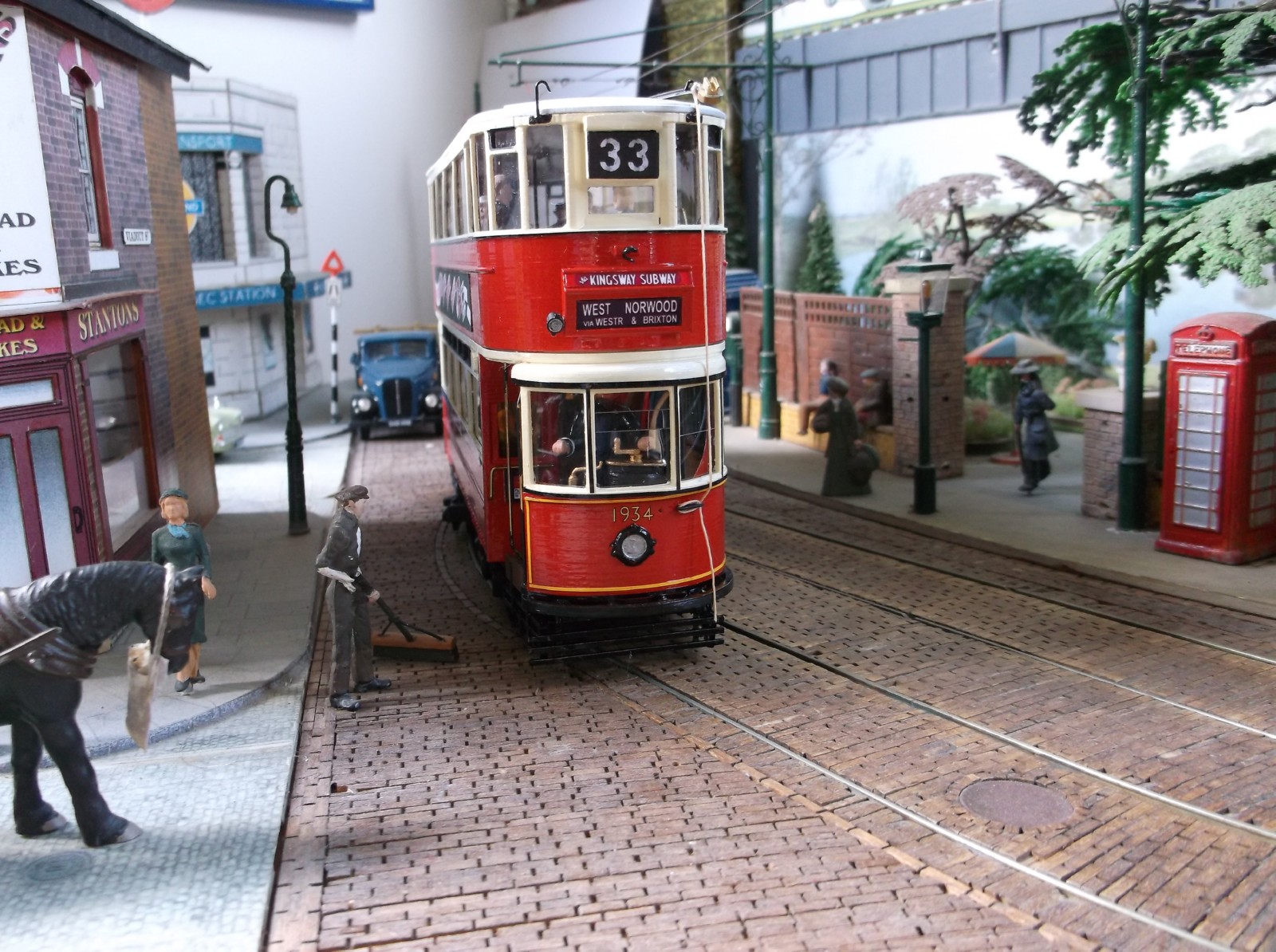

LCC TYPE E/3 AND HR/2 DOUBLE DECK TRAMCAR
6th July 2016
In 1930/31 the LCC built a fleet of E/3 all metal cars with the fleet numbers 1904 - 2003 fitted with maximum traction 2 motor trucks. A further batch
of HR/2 cars with equal wheel 4 motor trucks and fleet numbers 101- 159 were built but without overhead trolley poles. Also a batch of HR/2 cars with
the same body but without driver's screens fleet numbers 1854-1903 were built. The bulk of these cars were in service to the end of the system in 1952.
The body kit is complete with every detail [not just a body shell] including from the roof down, seating, stairs, controllers and lifeguards - just
buy, paint, glaze and assemble.
Cost of the body kit in i.materialise [smooth finish] is £335.75 and from Shapeways £255.00 [rough finish]. Also available
from Terry Russell Trams is a RTR motored truck, trolley pole and hand brakes for £165.00.
Also available is a destination/advert pack; ask for a quotation to suit your own personal requirements.

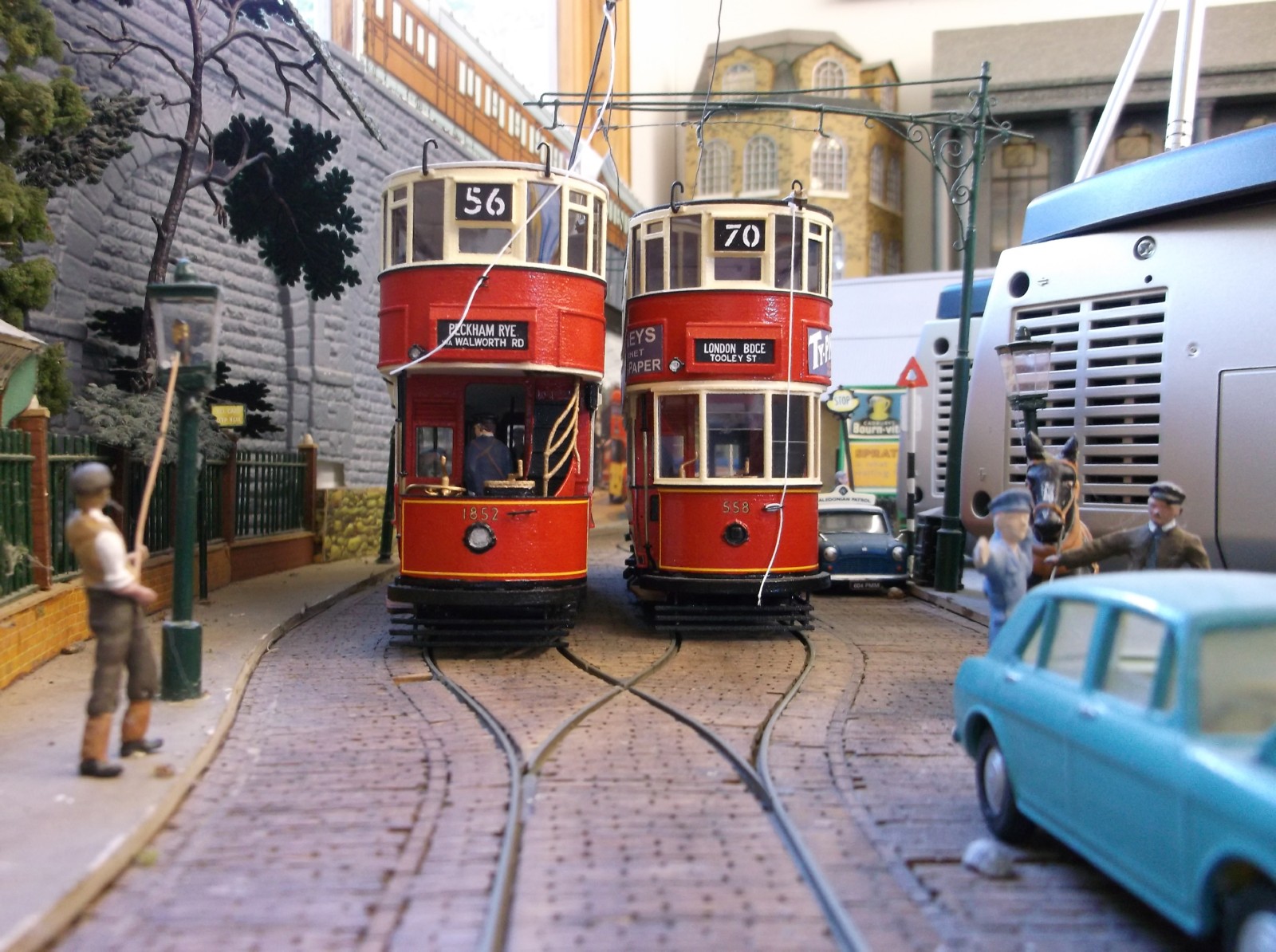

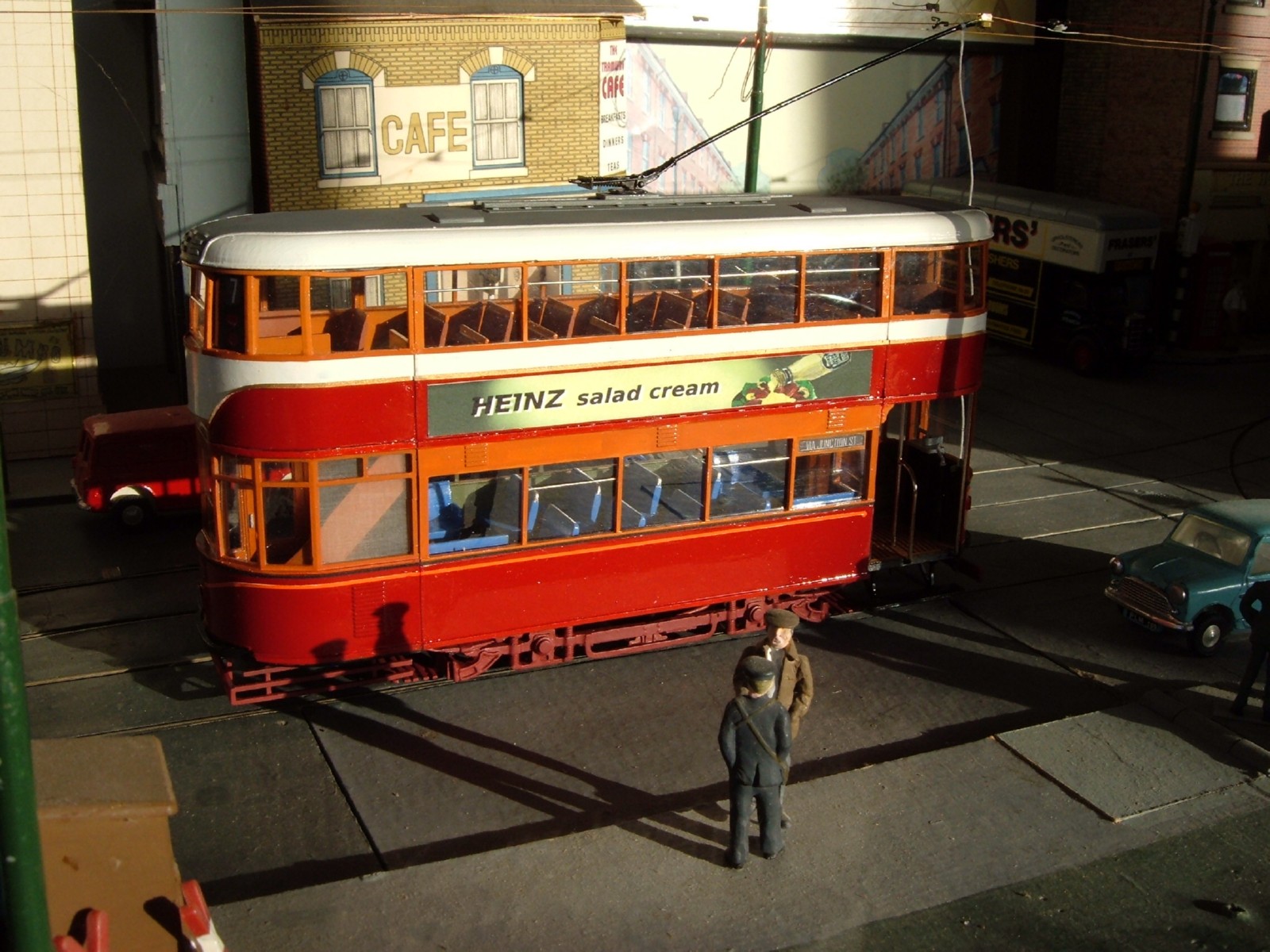

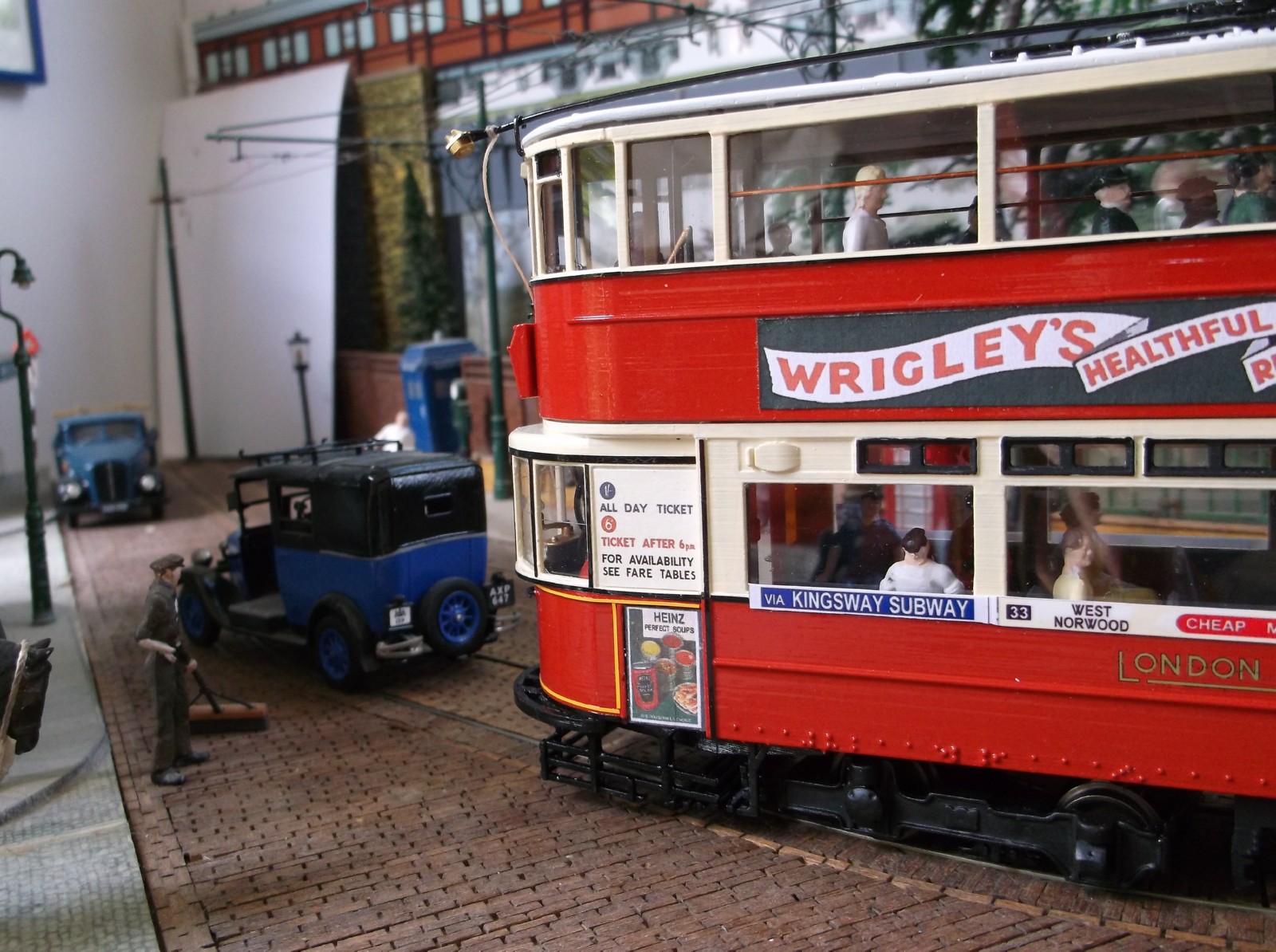

OPEN FRONTED LCC E/1 1929/30 "SUBWAY TRAMCAR" & 1928 HR/1 TRAMCAR
14th May 2016
In 1928 the LCC built a prototype "Hilly Route" car designated HR/1 with the fleet number 1852 fitted with equal-wheel 4 motor trucks as
depicted in the model shown. As a result of this, 50 identical bodies were built by English Electric in 1929 fleet numbered 552-601 designated
class E/1 and fitted with standard LCC maximum-traction trucks. Both these cars can be built from this kit.
The body kit is complete with every detail [not just a body shell] including from the roof down, seating, stairs, controllers and lifeguards - just buy,
paint, glaze and assemble. Model photo is of HR/1 1852. The only difference from the open fronted E/1 is the trucks. By 1940 all the 500 class cars had
been fitted with driver's screens and most of them ran in service until the end of London's trams and that is the subject of our second kit.
Unfortunately 1852 was lost in the 1940 bombing of the city.
Cost of the body kit £225.00. Also available from Terry Russell Trams are RTR motored trucks, trolley poles, hand brakes and a destination/advert pack
costing £165.00 including P&P. Please state which car you will be building.

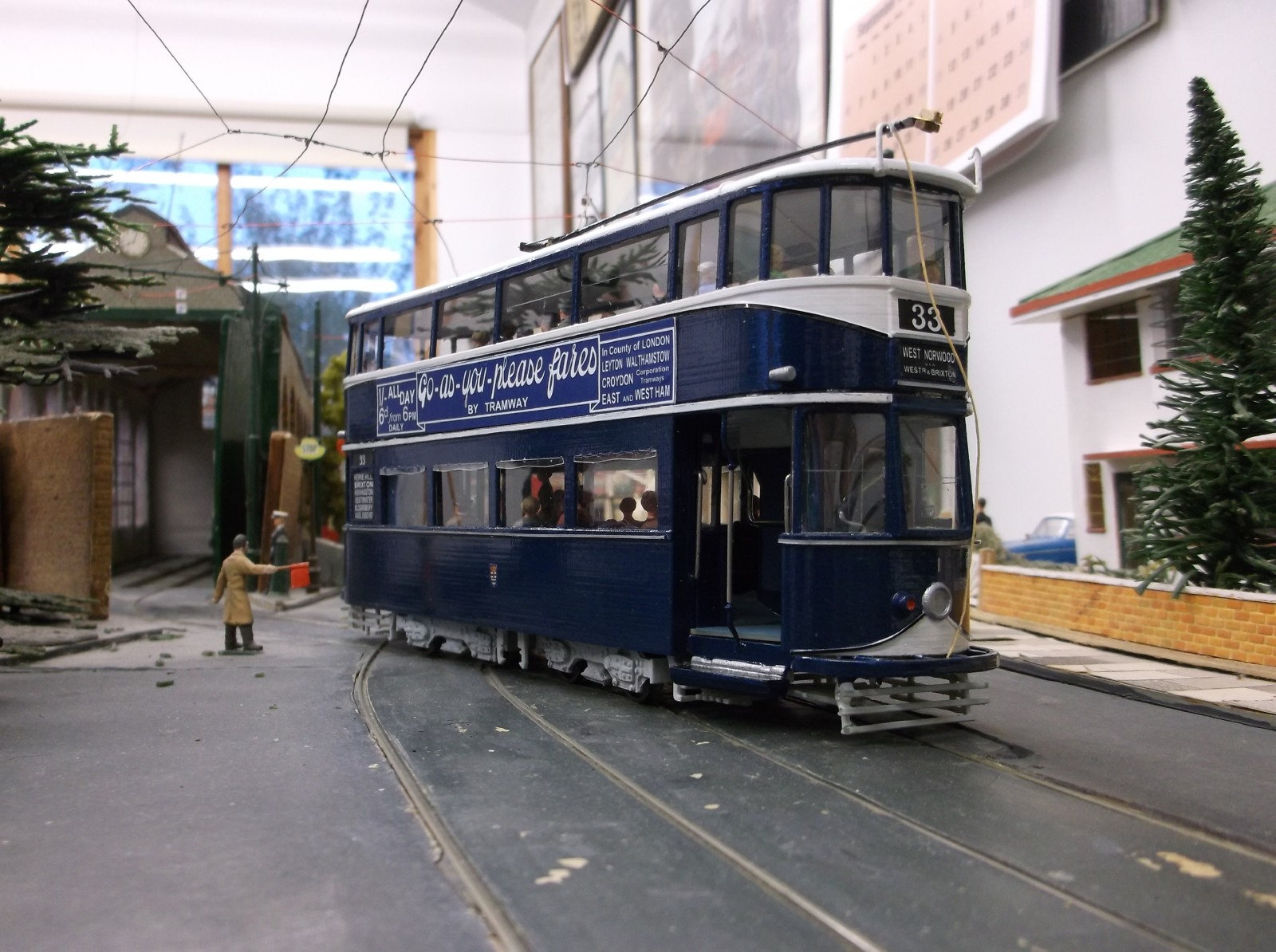

LCC EXPERIMENTAL CAR NUMBER 1 "Bluebird"
14th May 2016
In 1930 the LCC built a modern prototype car with the fleet number 1 fitted with equal-wheel 4 motor trucks as depicted in the model shown. It was
intended to be the fore-runner of a fleet of such cars thwarted by the creation of the LPTB in 1933.
The body kit is complete with every detail [not just a body shell] including from the roof down, seating, stairs, controllers and lifeguards - just buy,
paint, glaze and assemble.
Cost of the body kit in i.materialise [smooth finish] is £363.00 and from Shapeways £267.00 [rough finish]. Also from
Terry Russell Trams are RTR motored trucks, trolley poles, hand brakes and a destination/advert pack. Cost £165.00 including P&P.
When 'Bluebird' was acquired by London Transport, the car was repainted in the corporate red and cream. The body was not changed in any way so the kit is
correct for this state. Click on the image above to view the model in 'Bluebird' livery and then click on the displayed image to see the same model in 'Red
and Cream'.

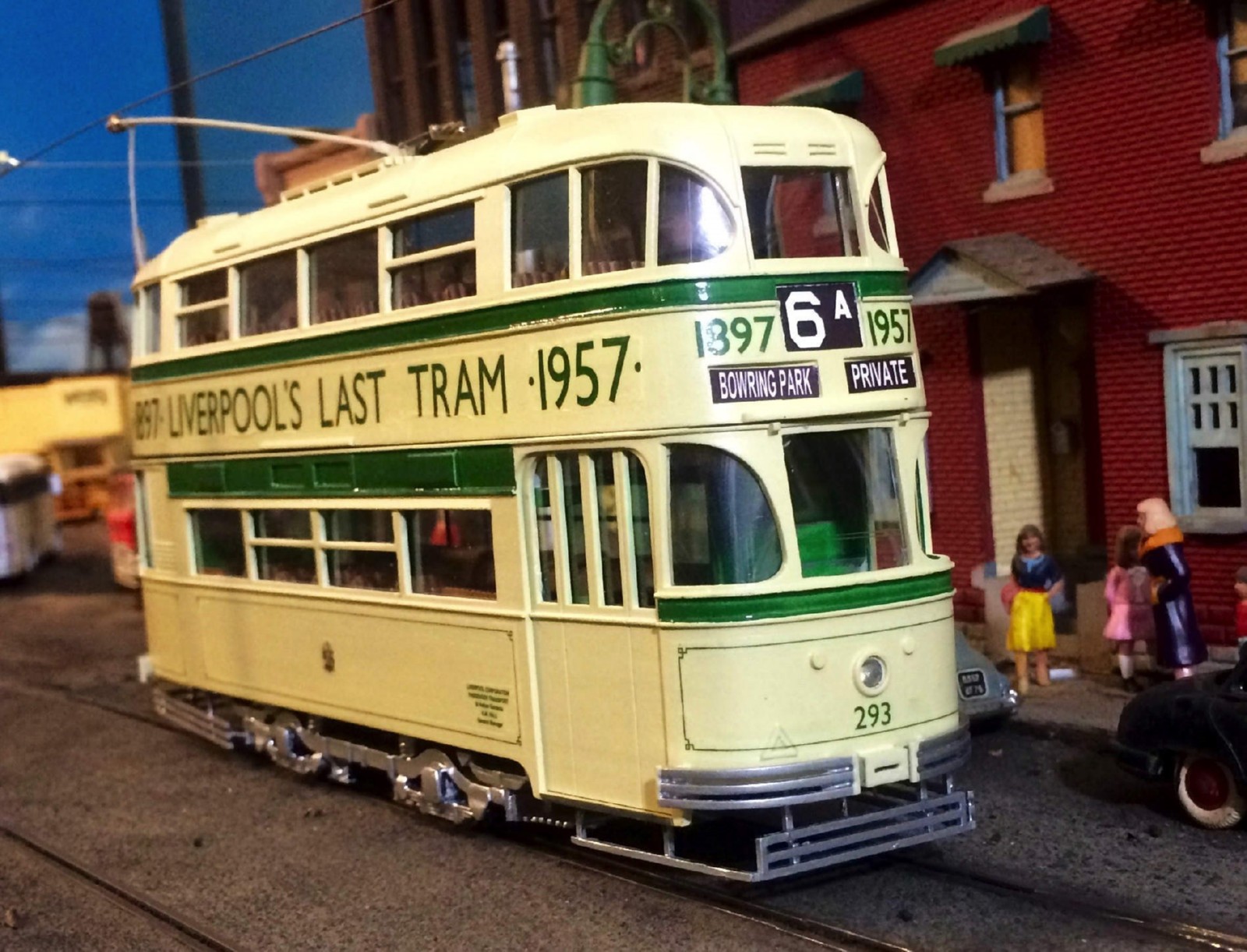

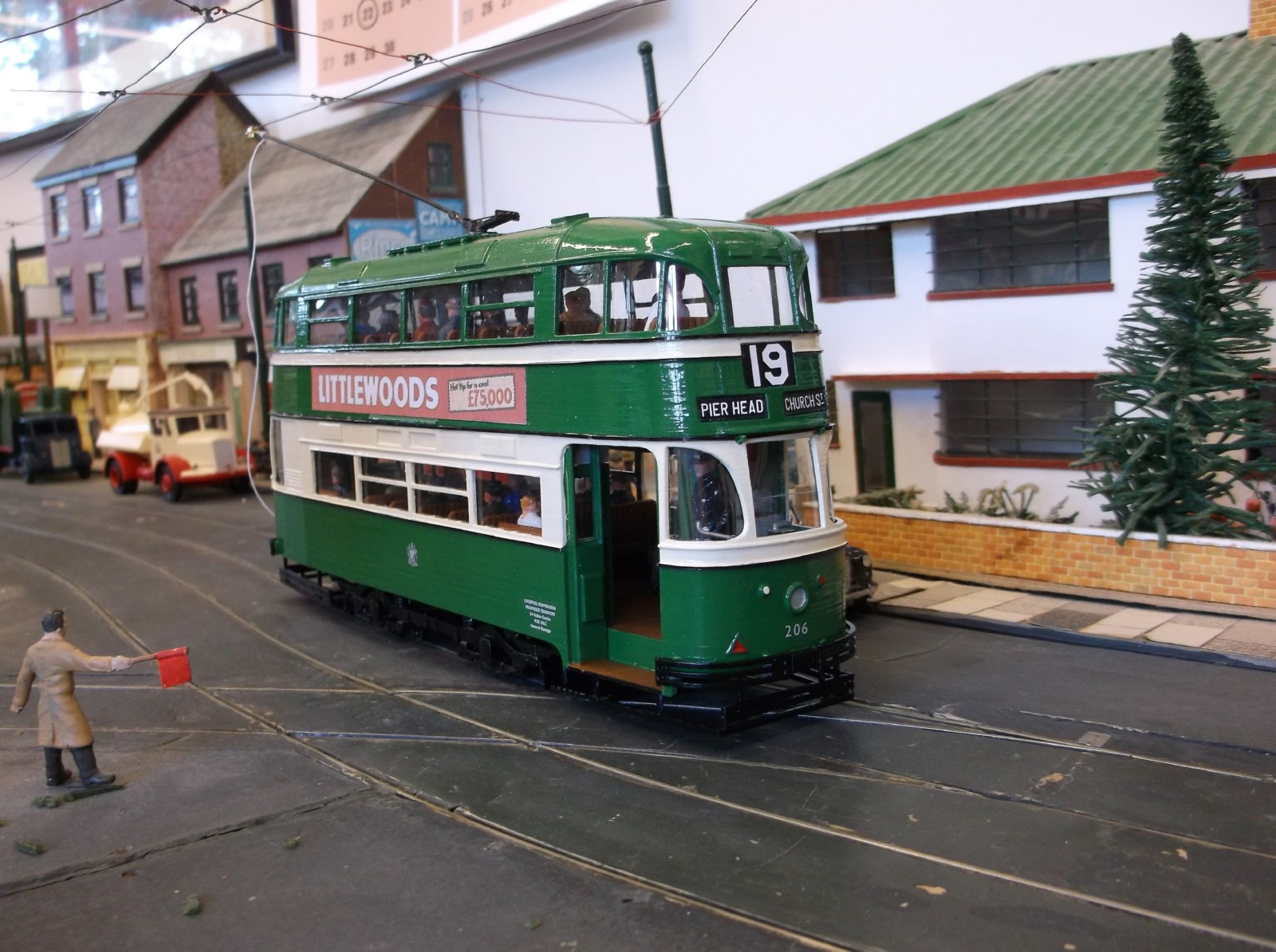

LIVERPOOL CORPORATION "BABY GRAND" TRAMCAR
14th May 2016
In 1930 Liverpool's Edge Lane works produced a large fleet of modern streamlined cars fitted with 4 wheel EMB Hornless truck, fleet numbers 201-300 as
depicted in the model shown. They ran until the closure of the system in 1957.
The six piece body kit is complete with every detail [not just a body shell] including from the roof down, seating, stairs, controllers and lifeguards - just
buy, paint, glaze and assemble.
Cost of the body kit from Terry Russell Trams is £261.00 and also available from Terry Russell Trams are RTR motored truck, trolley pole and
hand brakes costing £109.00 including P&P. Destination/advert pack is also available; ask for a quotation for your own personal requirements.

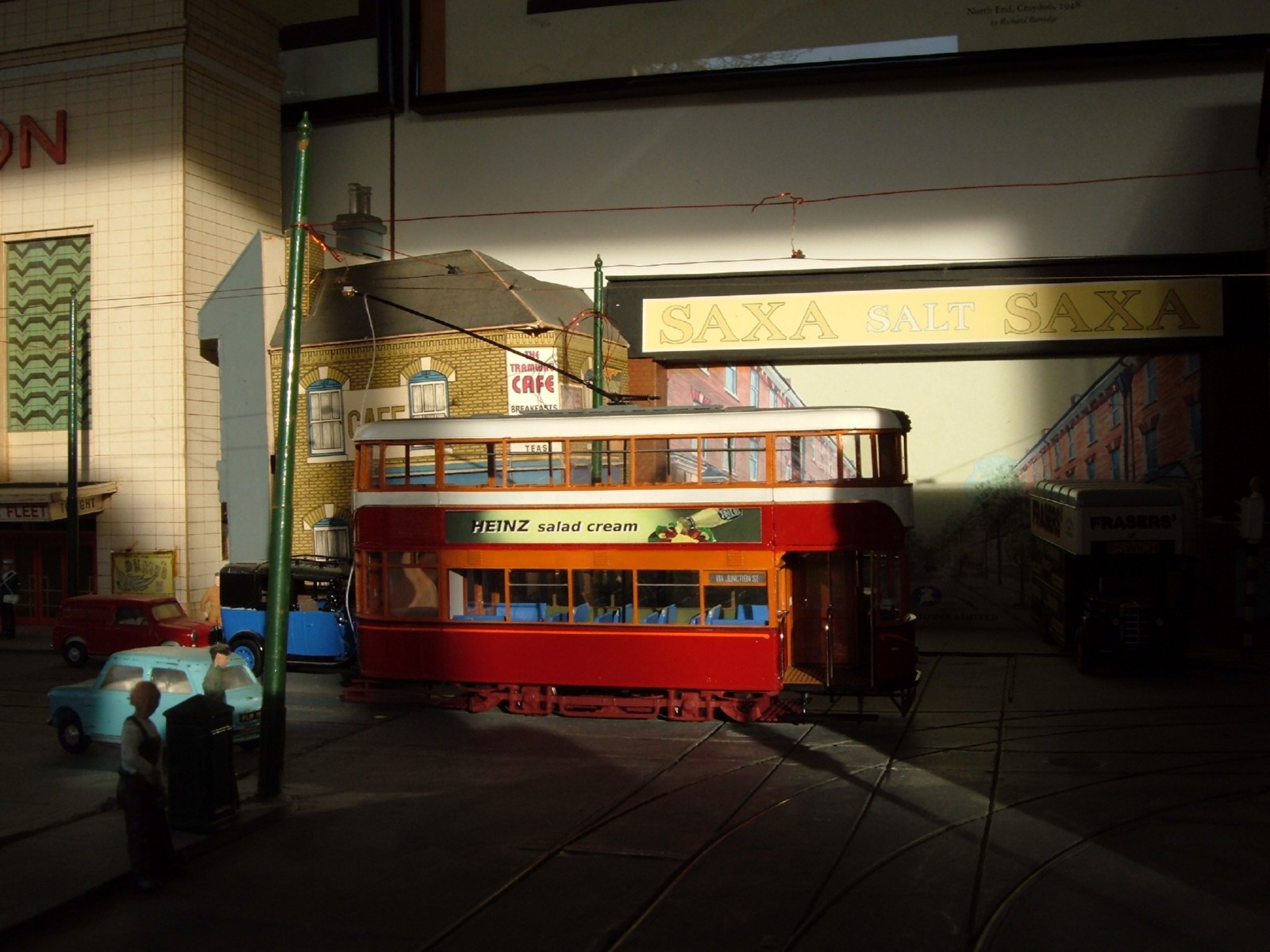

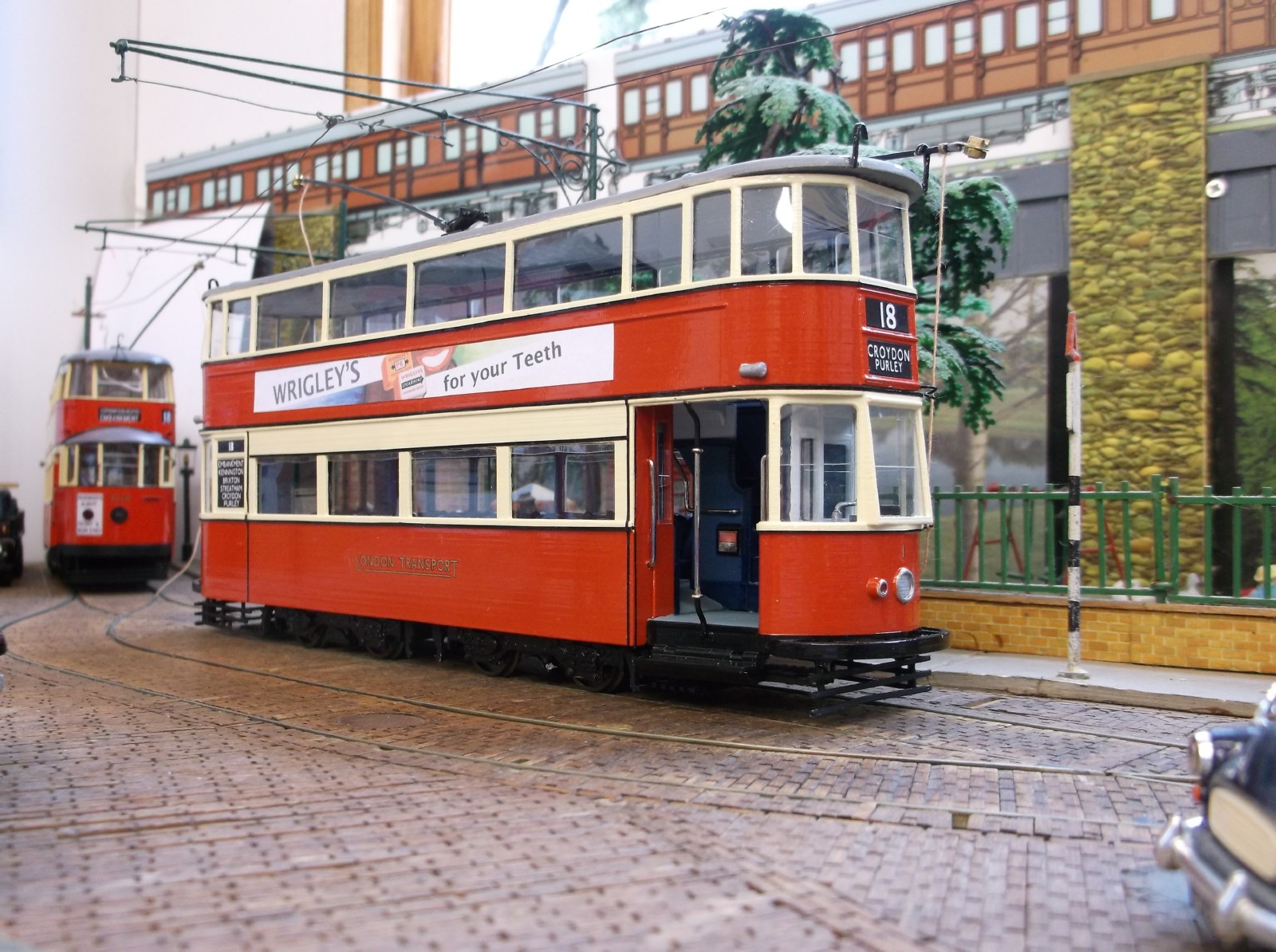

TERRY RUSSELL/SHAPEWAYS TRAMCAR
21st July 2015

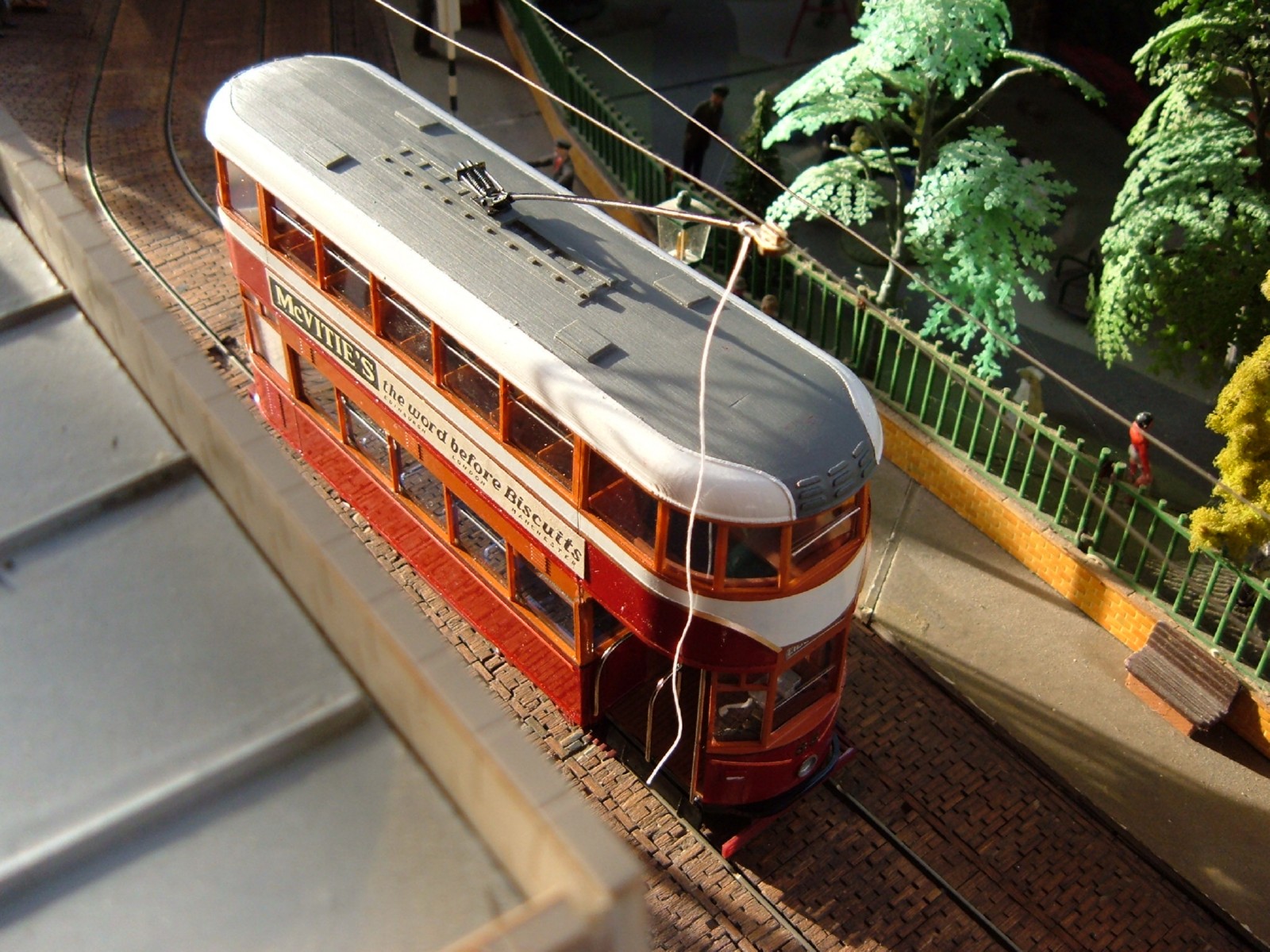

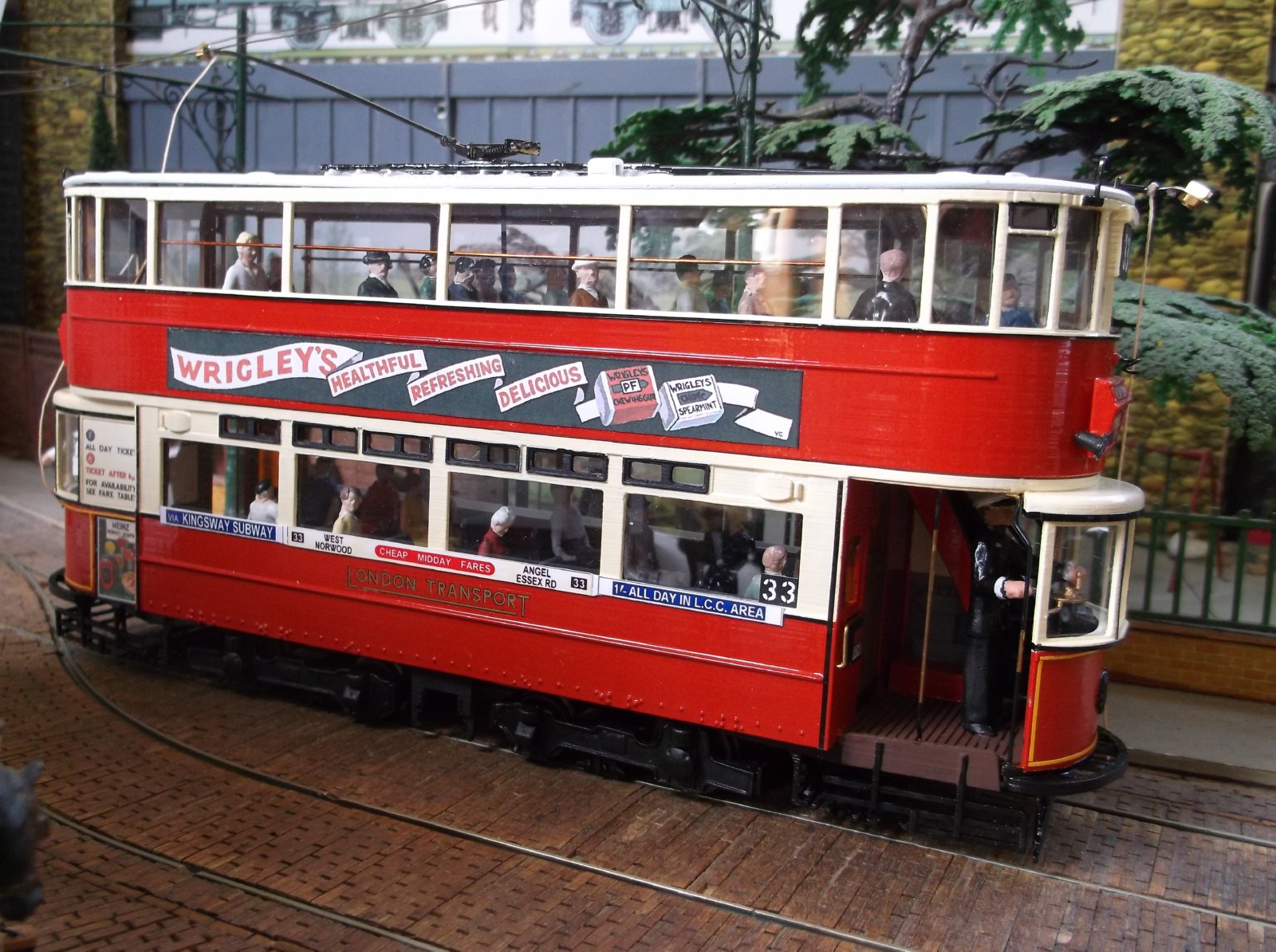

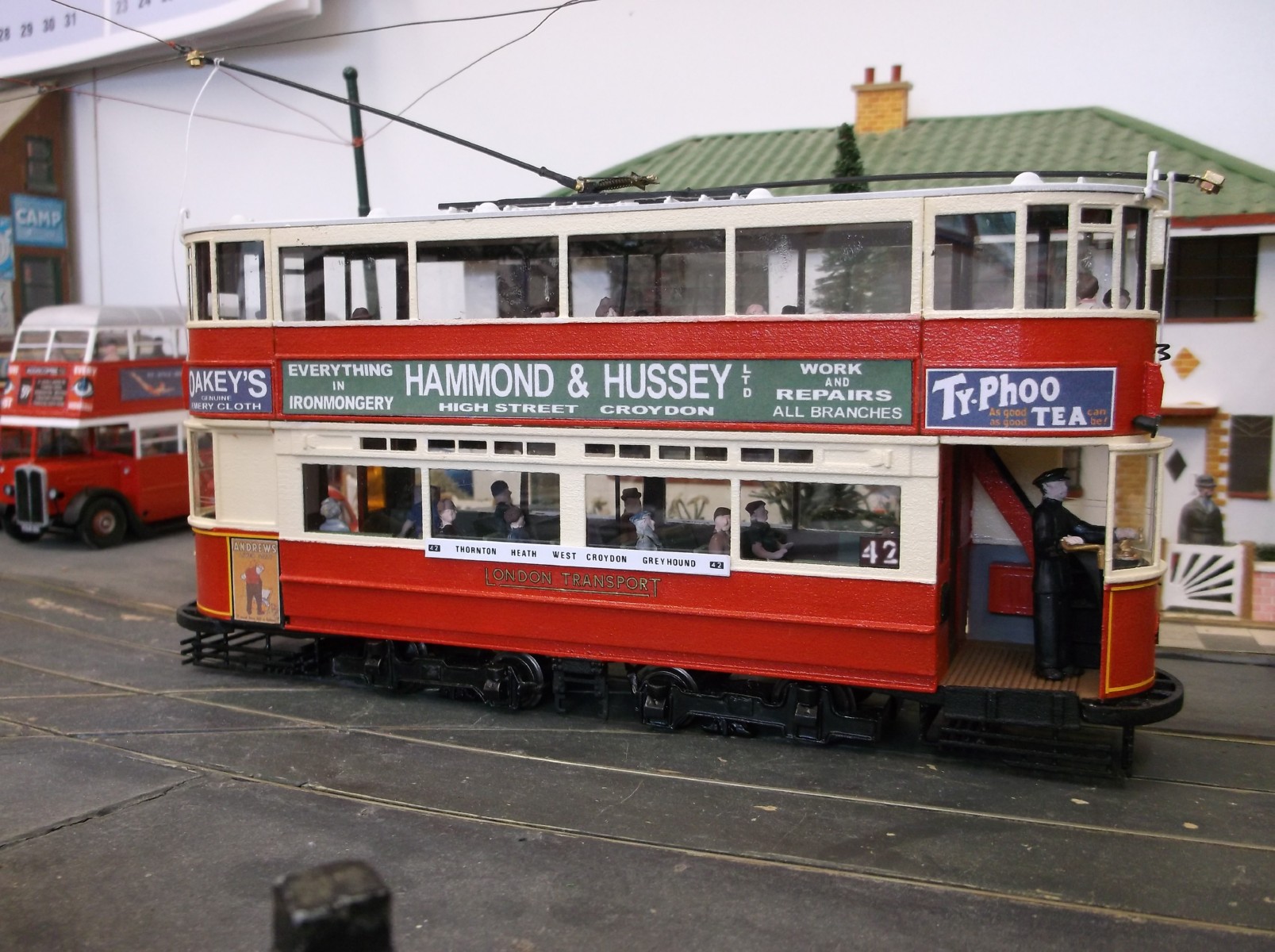

The recently introduced London Transport [ex LCC] class 500 tramcar in 1/43rd scale can be built in several versions and here it is in pre-war condition
on my local Croydon route 42. The London Transport STL bus is another of the Terry Russell/Shapeways products about which
Enquiries are invited.

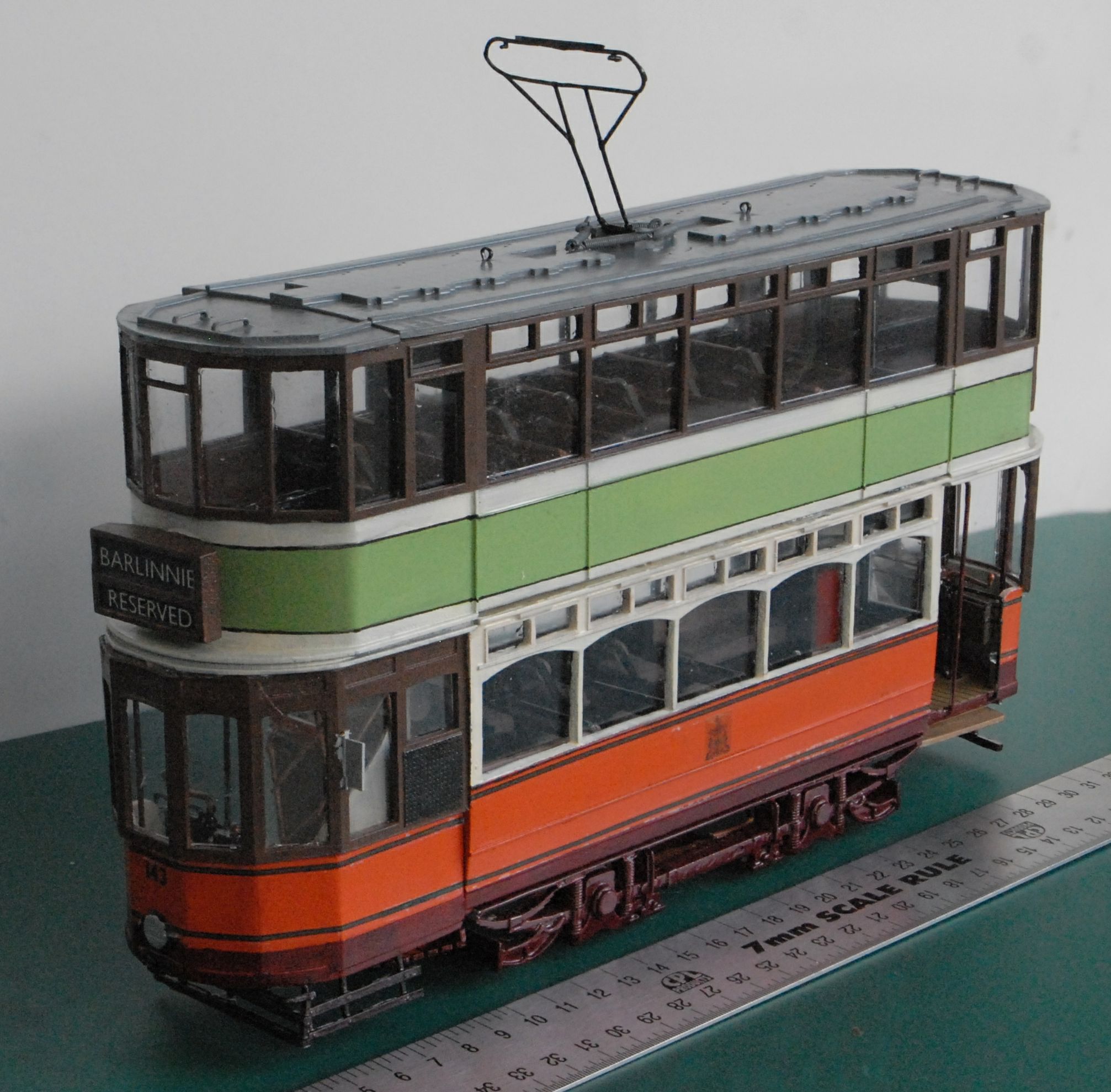

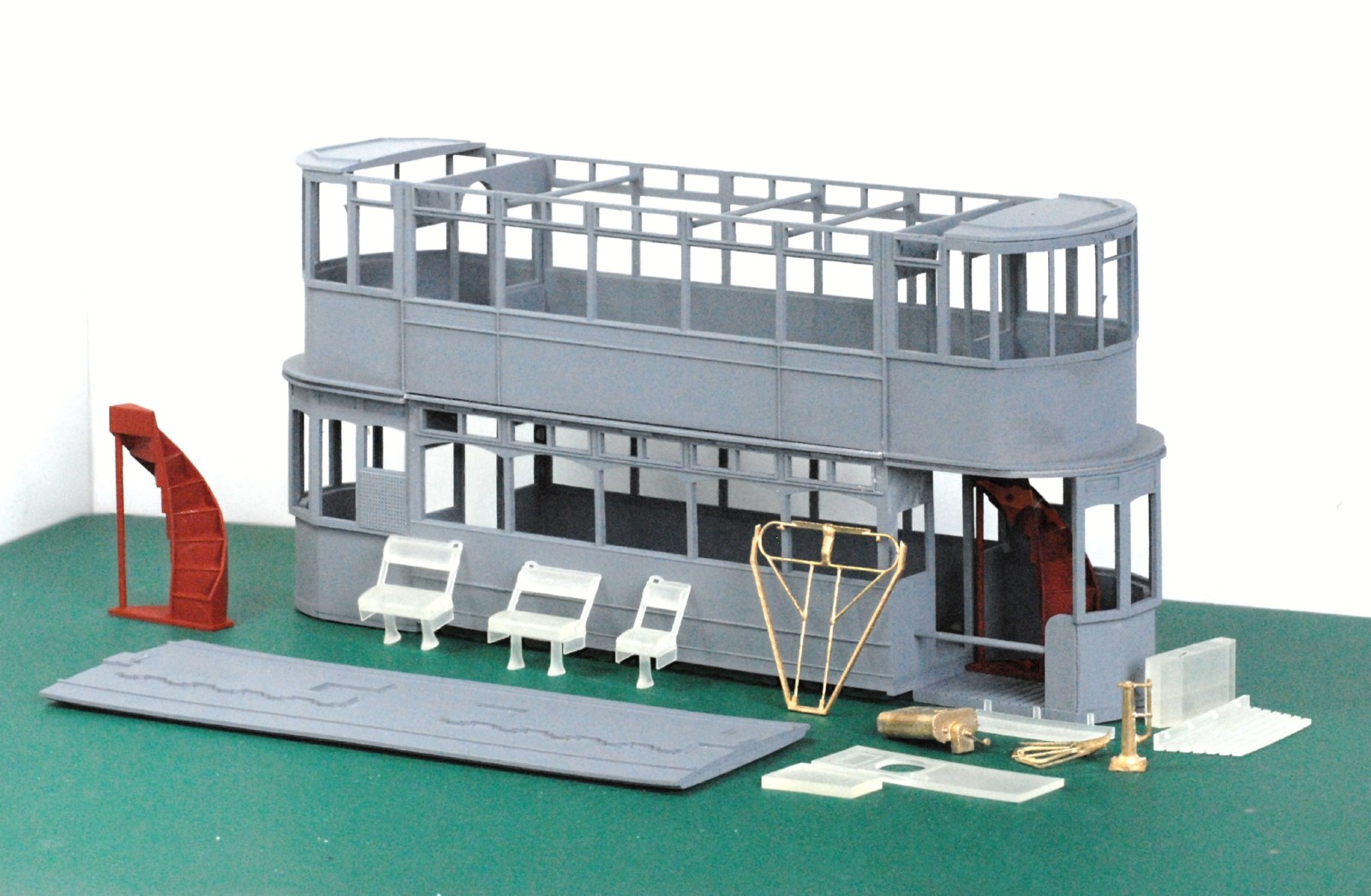

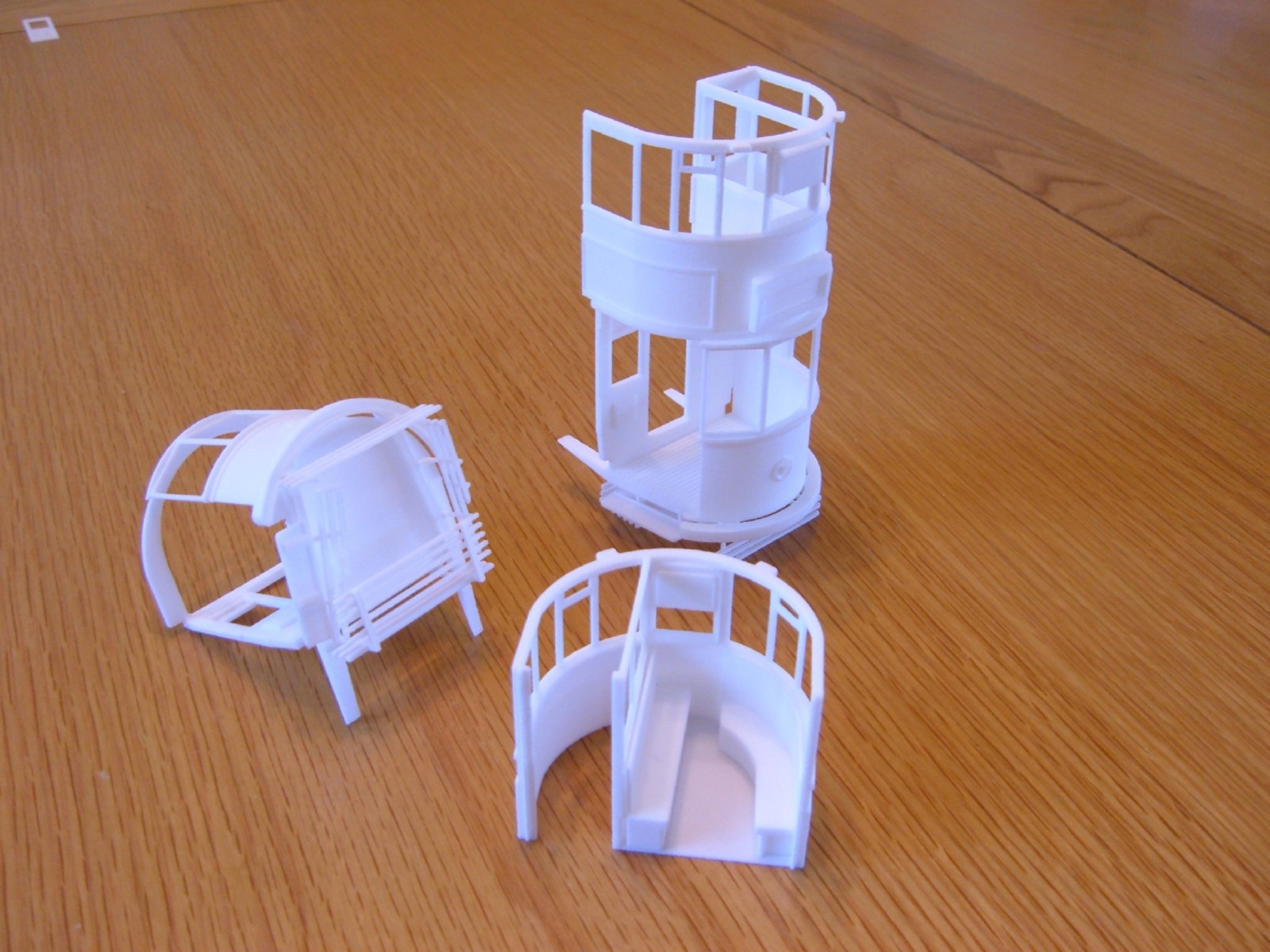

3D PRINTED KIT OF '0' SCALE GLASGOW 'HEX-DASH' MODEL TRAMCAR
1st December 2014 - Updated 19th July 2015
This model was released by Radley Models
in July 2015 and is complete with all the resin body in high definition 16micron resolution smooth 3D
material and parts. Current price is £185.
Sold separately by Terry Russell Trams is an accurate Glasgow Corporation 8 foot
wheelbase RTR, "below floor" motored truck, using overhead or 2-rail power source, with or
without DCC ready facility for around £95.00. Ordered variations may cost more, so please ask for a quotation.

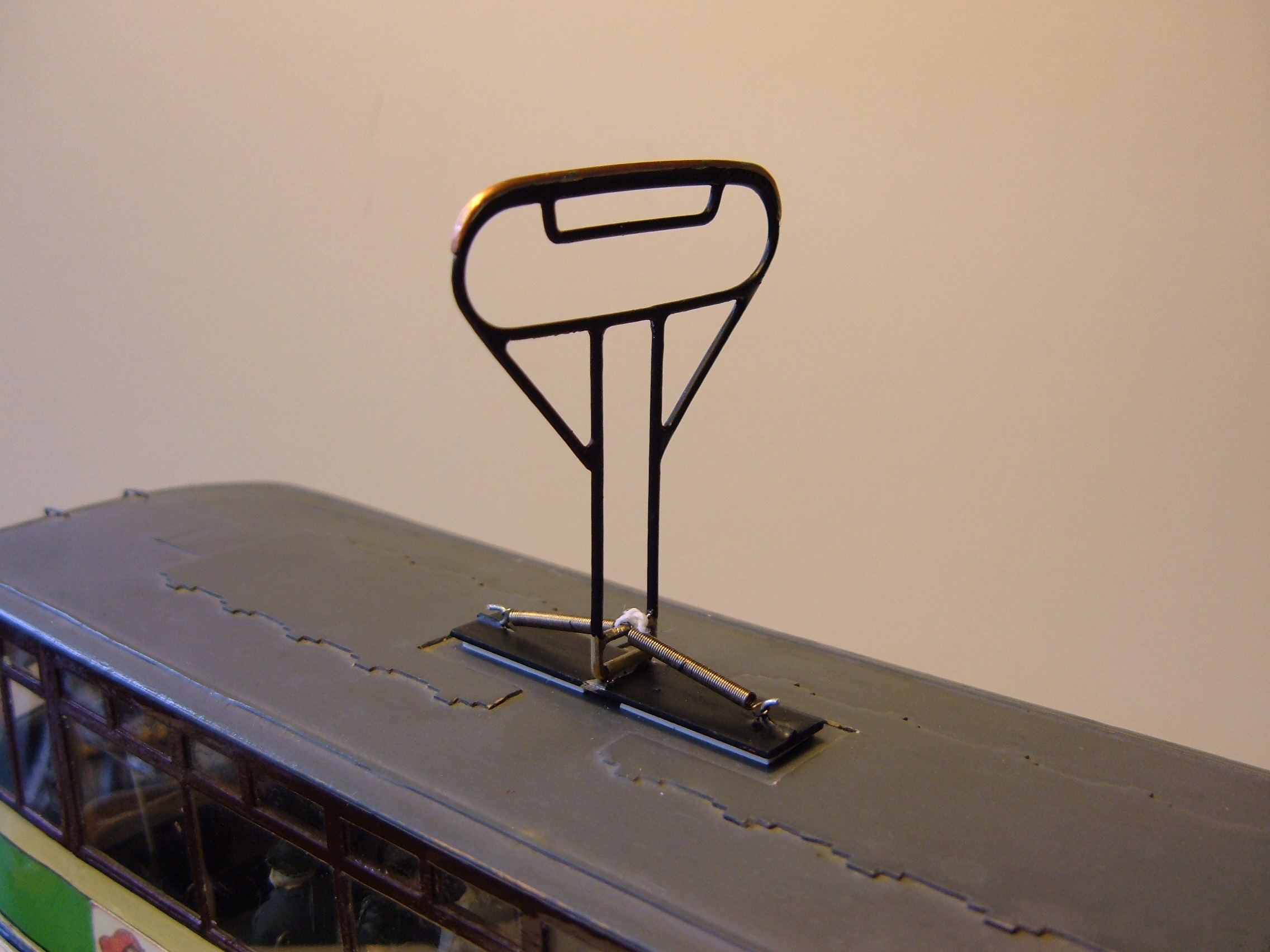

There is a bow collector supplied with the kit from Radley Models, but you can have a Terry Russell ready to run version for £40 including postage.

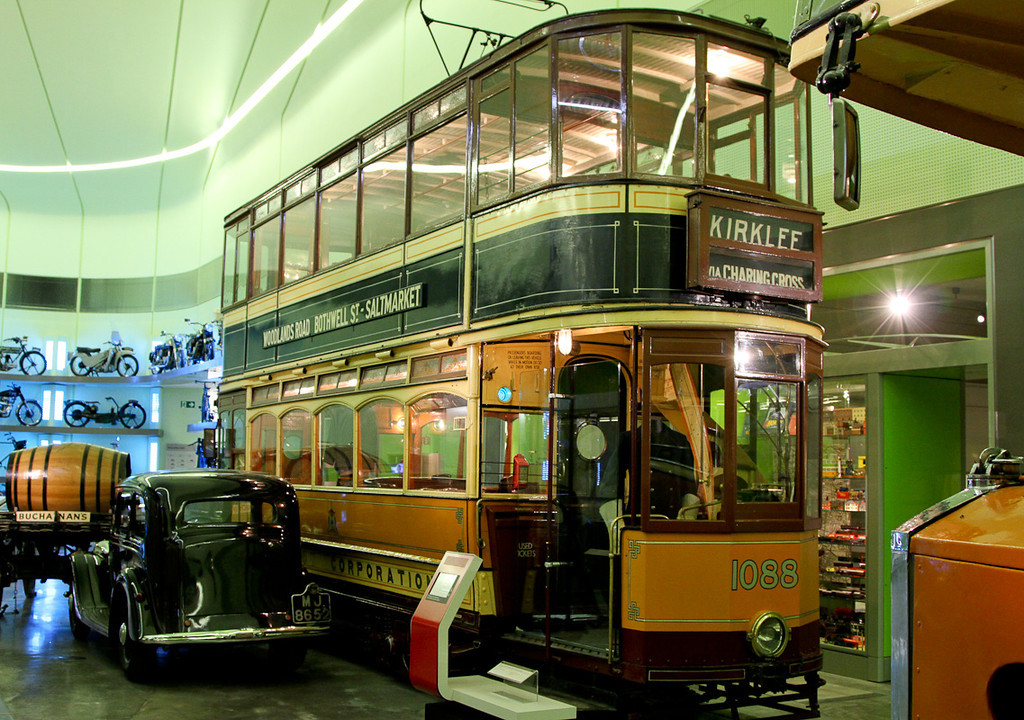

A sequence of pictures of this model tram can be viewed by clicking on our picture of 1088 at the Riverside Museum, Glasgow.

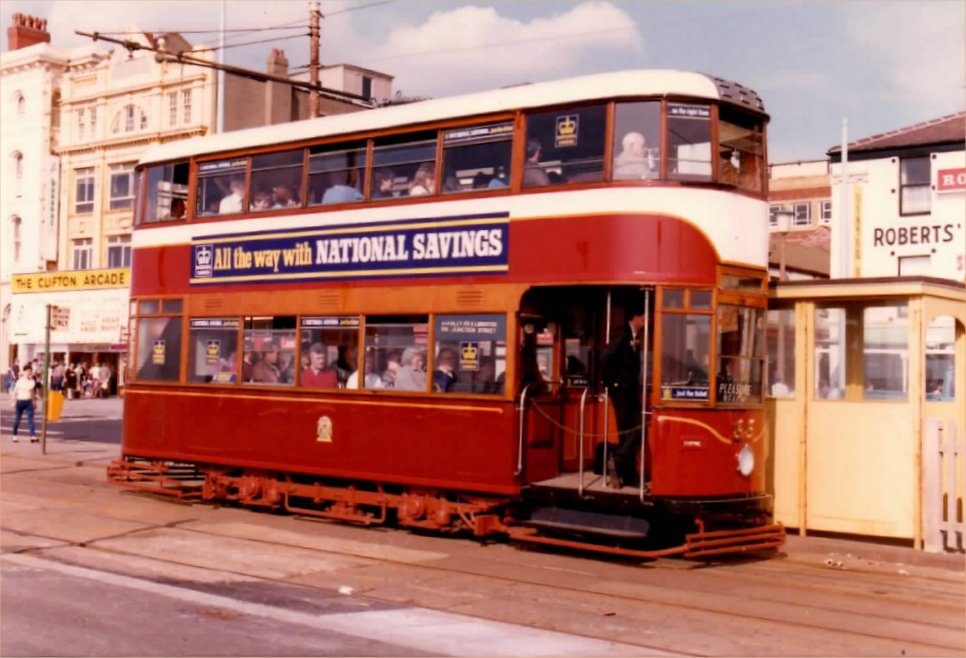

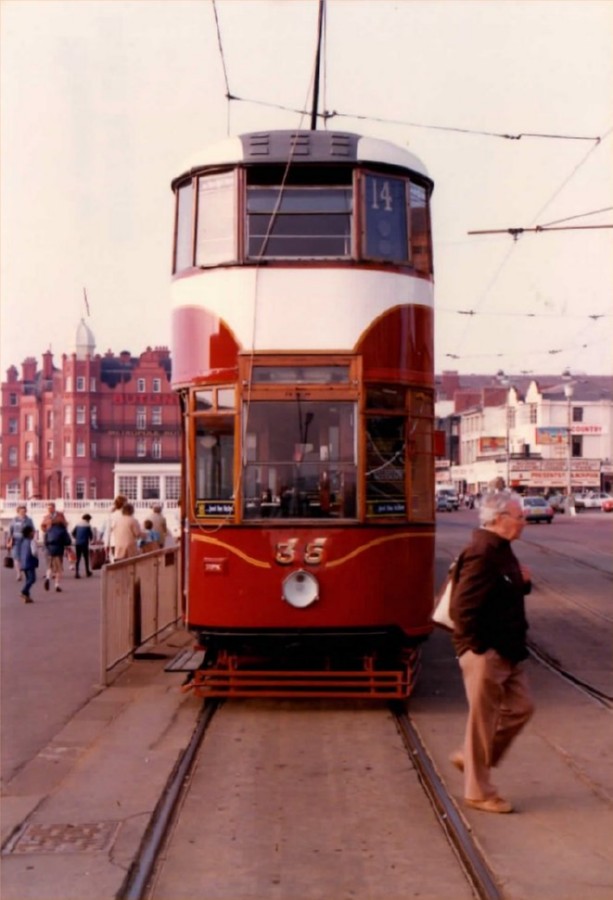

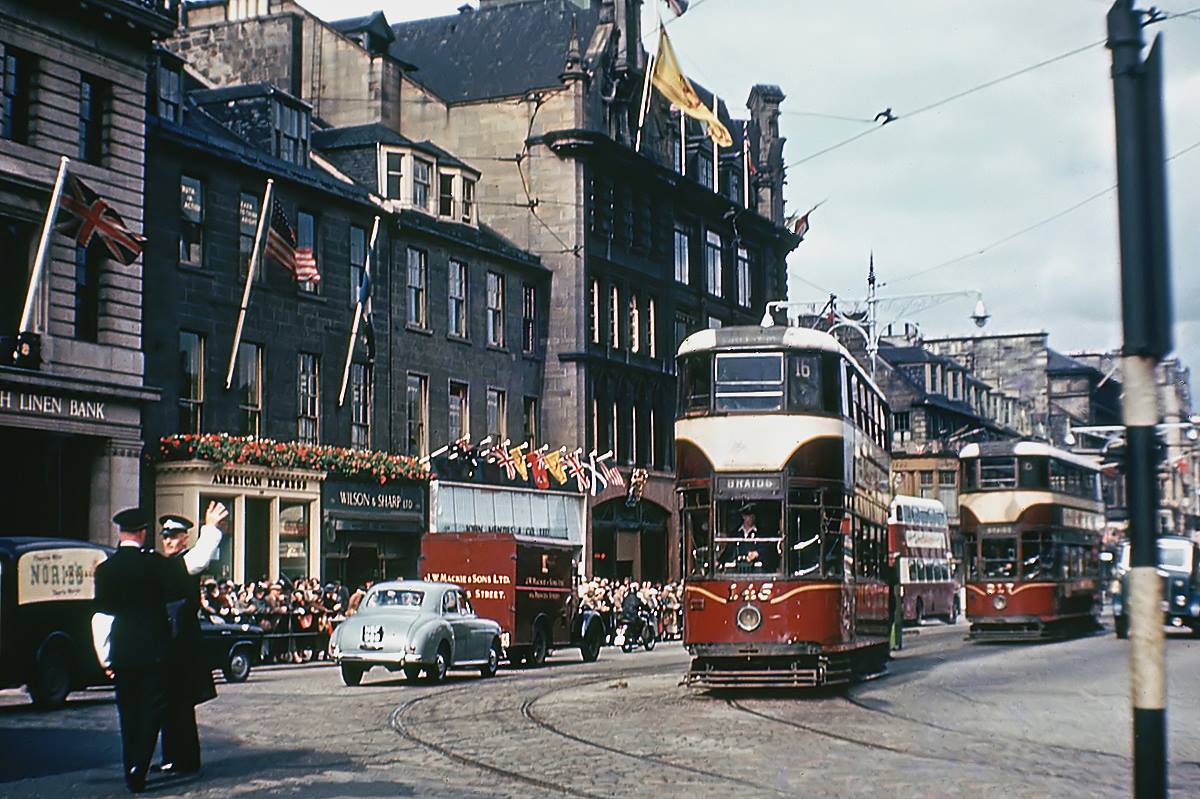

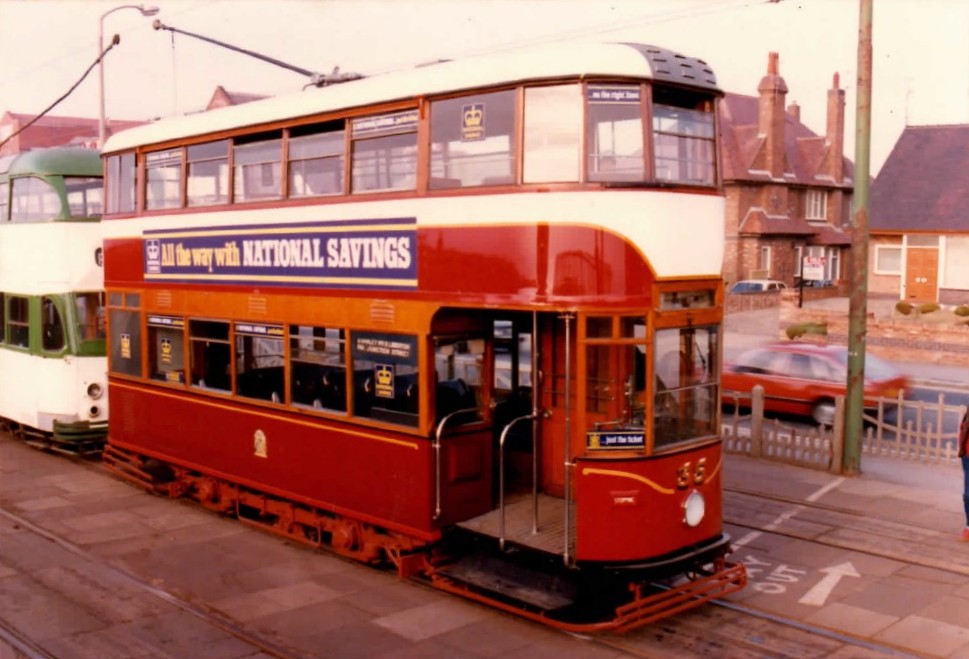

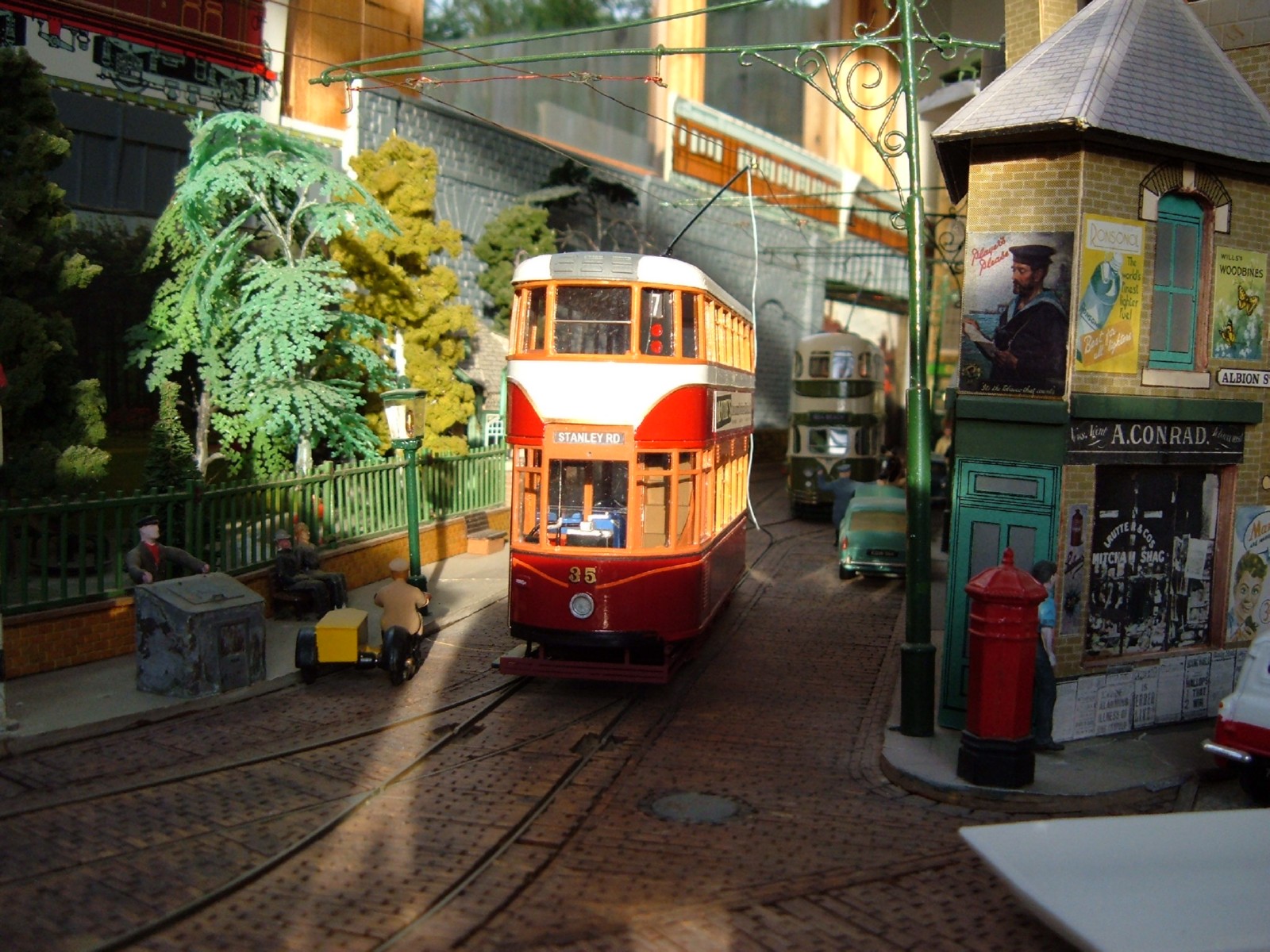

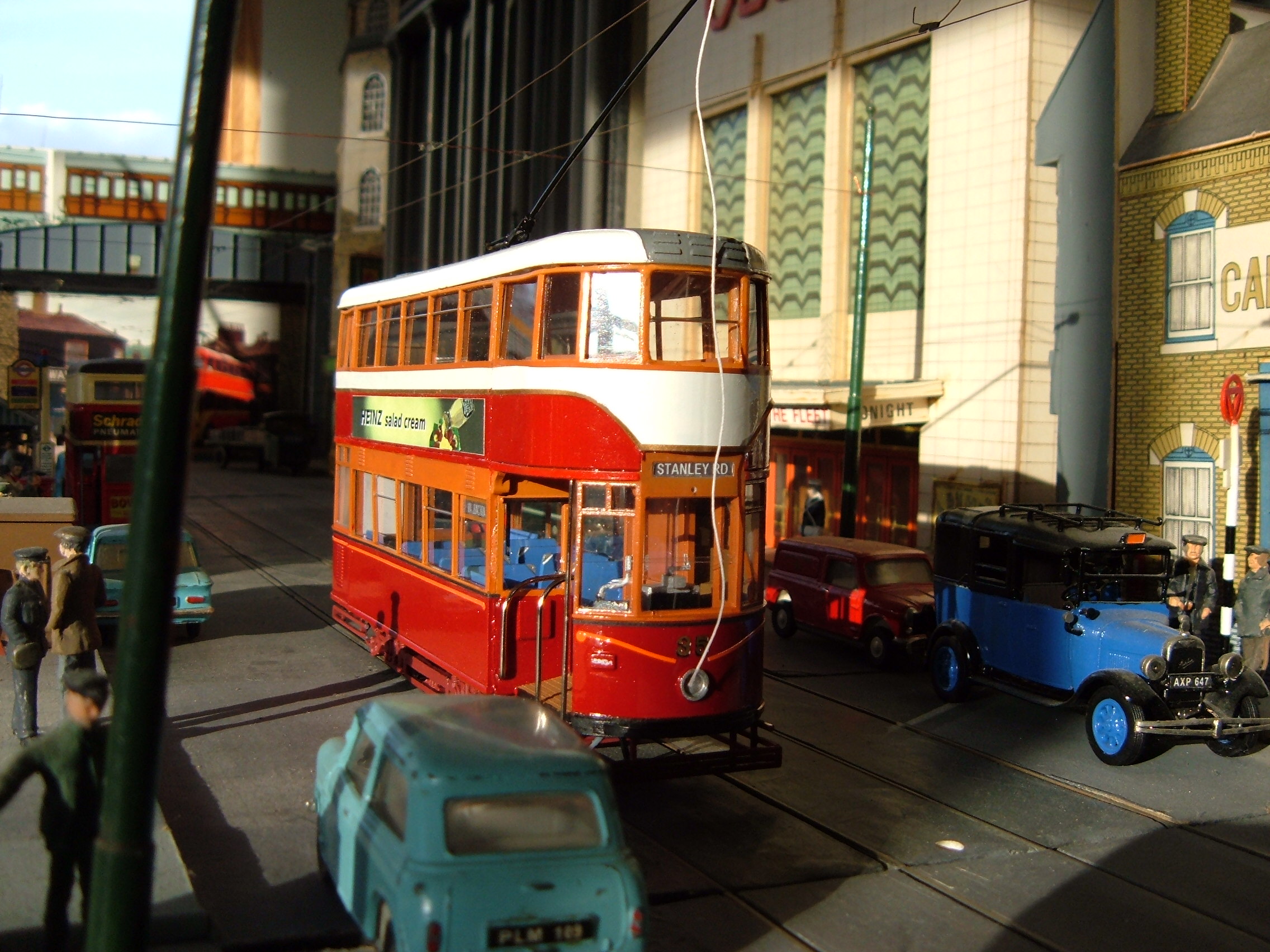

EDINBURGH CORPORATION "STANDARD" TRAMCAR
Updated 14th May 2016
In 1935 Edinburgh's Shrubhill works started production of a large fleet of modern tramcars fitted with 4 wheel Peckham P22A trucks, fleet numbers in no
specific sequence as depicted in the model shown. They ran until the closure of the system in 1957.

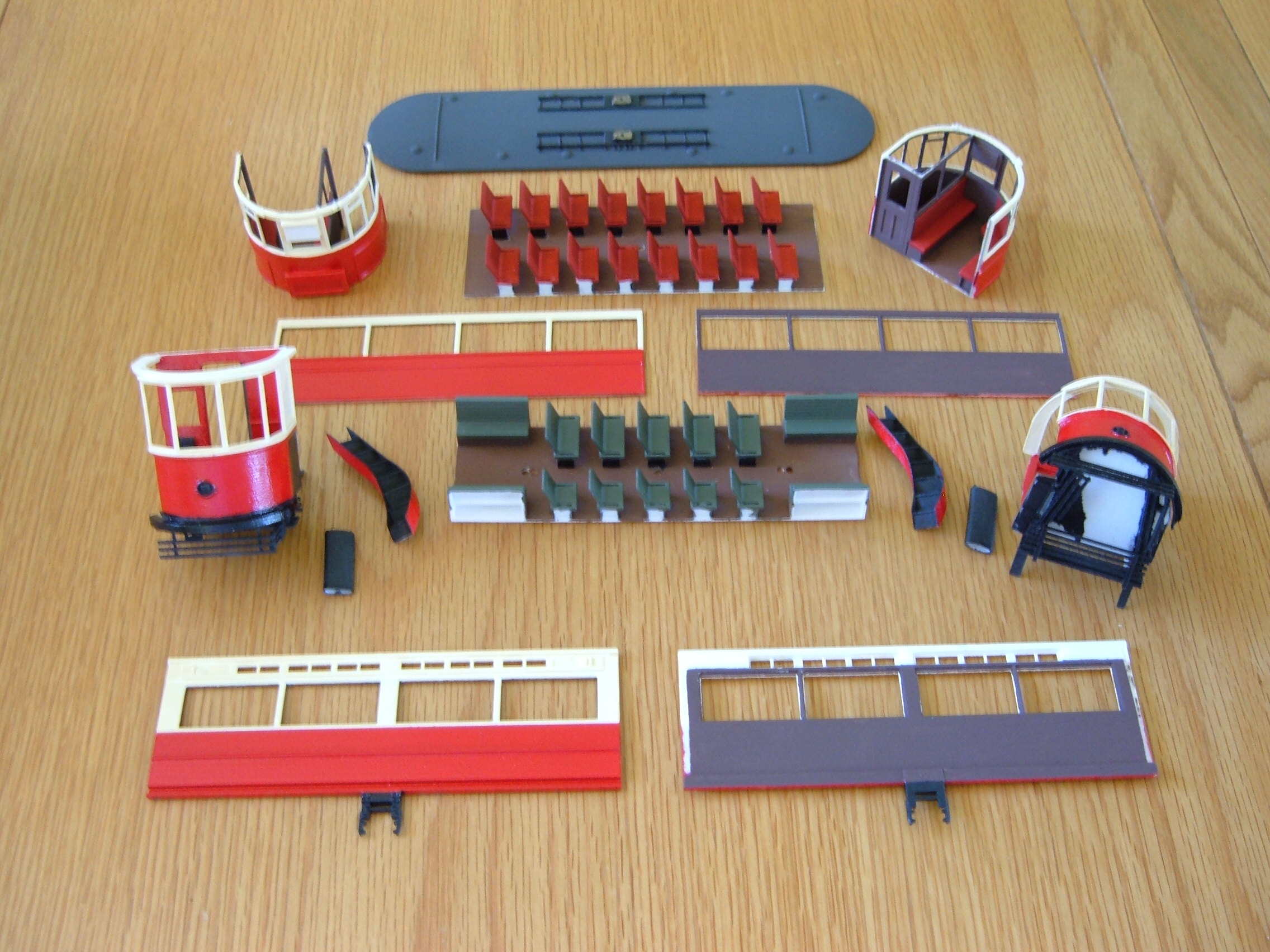

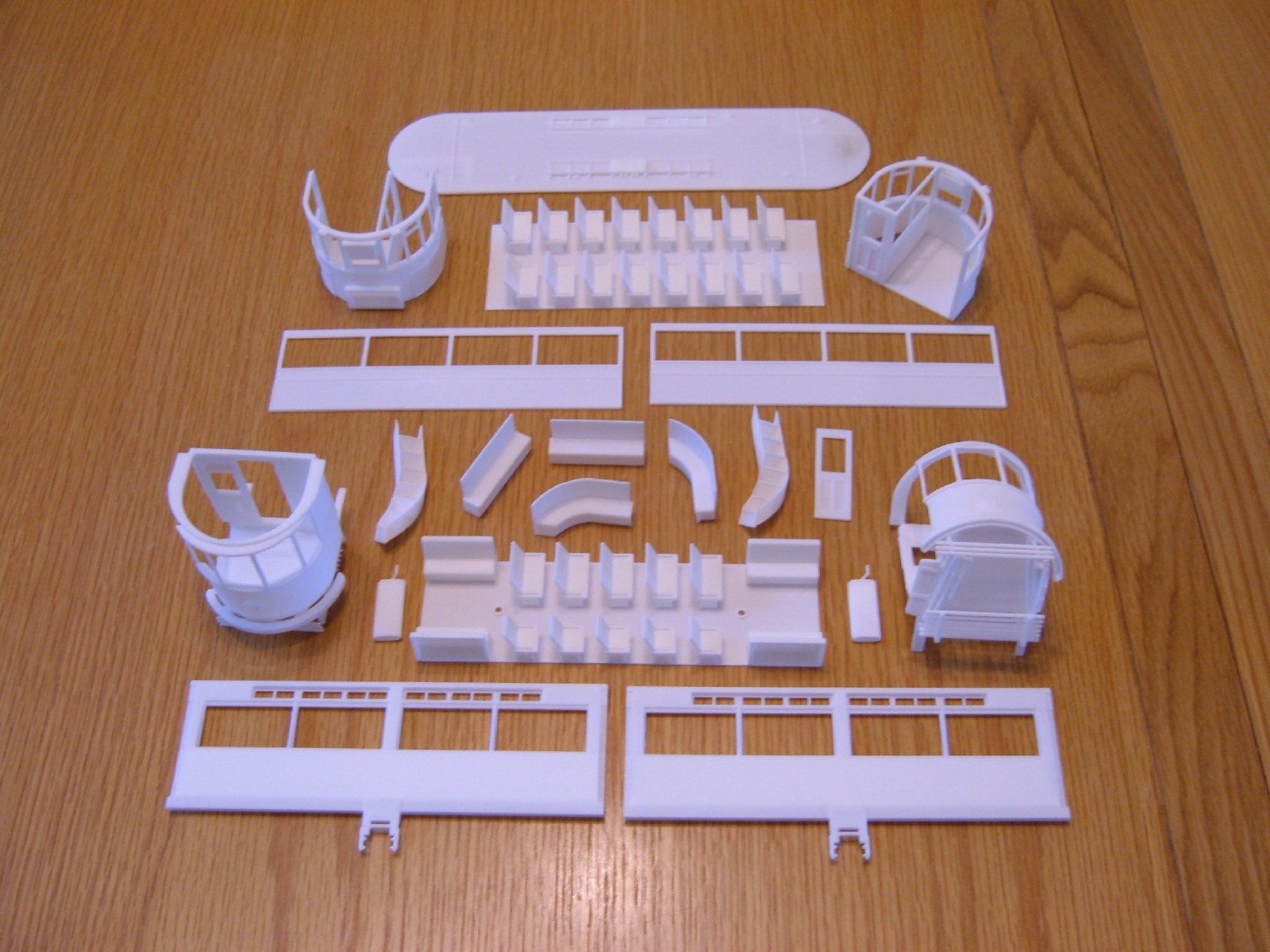

The 15 piece body kit is complete with every detail [not just a body shell] including from the roof down, seating, stairs, controllers and
lifeguards - just buy, paint, glaze and assemble.
Cost of the body kit from Terry Russell Trams is £354.10 in the smooth i.materialise material. Also available from Terry Russell Trams are
RTR motored truck, trolley pole and hand brakes costing £112.00. Prototypical advert decals are also available.
In the build of my own model, I have gilded the lily by adding tinned copper wire drop window frames and had the hand-made entrance grab rails nickel plated.
I am absolutely delighted with the model and am proud to have it running on my layout.

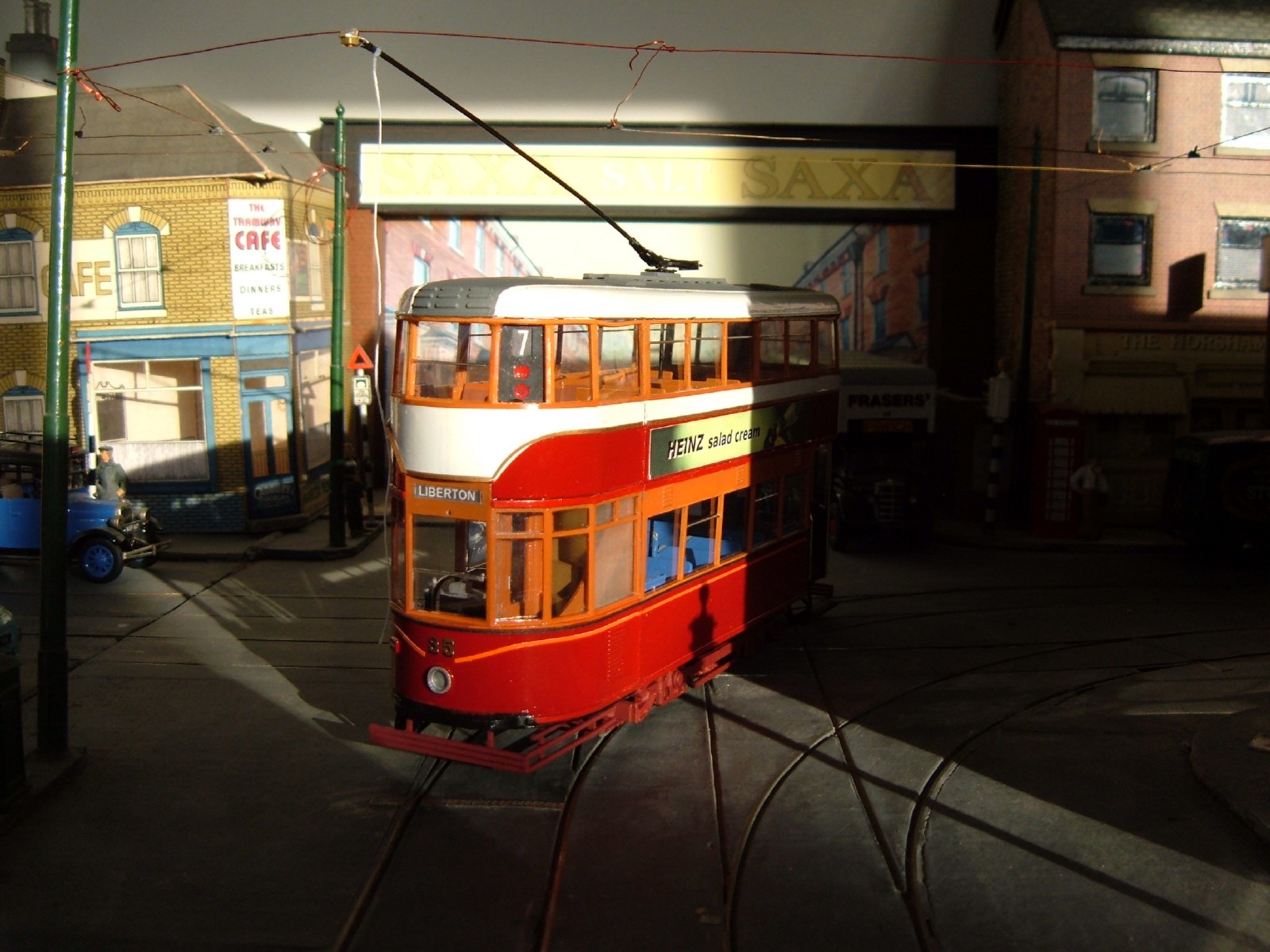

A sequence of pictures showing Terry Russell's build of this model running on his home layout and of real Edinburgh trams can be viewed by clicking
on the picture above. All pictures are ©Mike Skeggs, Mark David Bearton or Terry Russell.

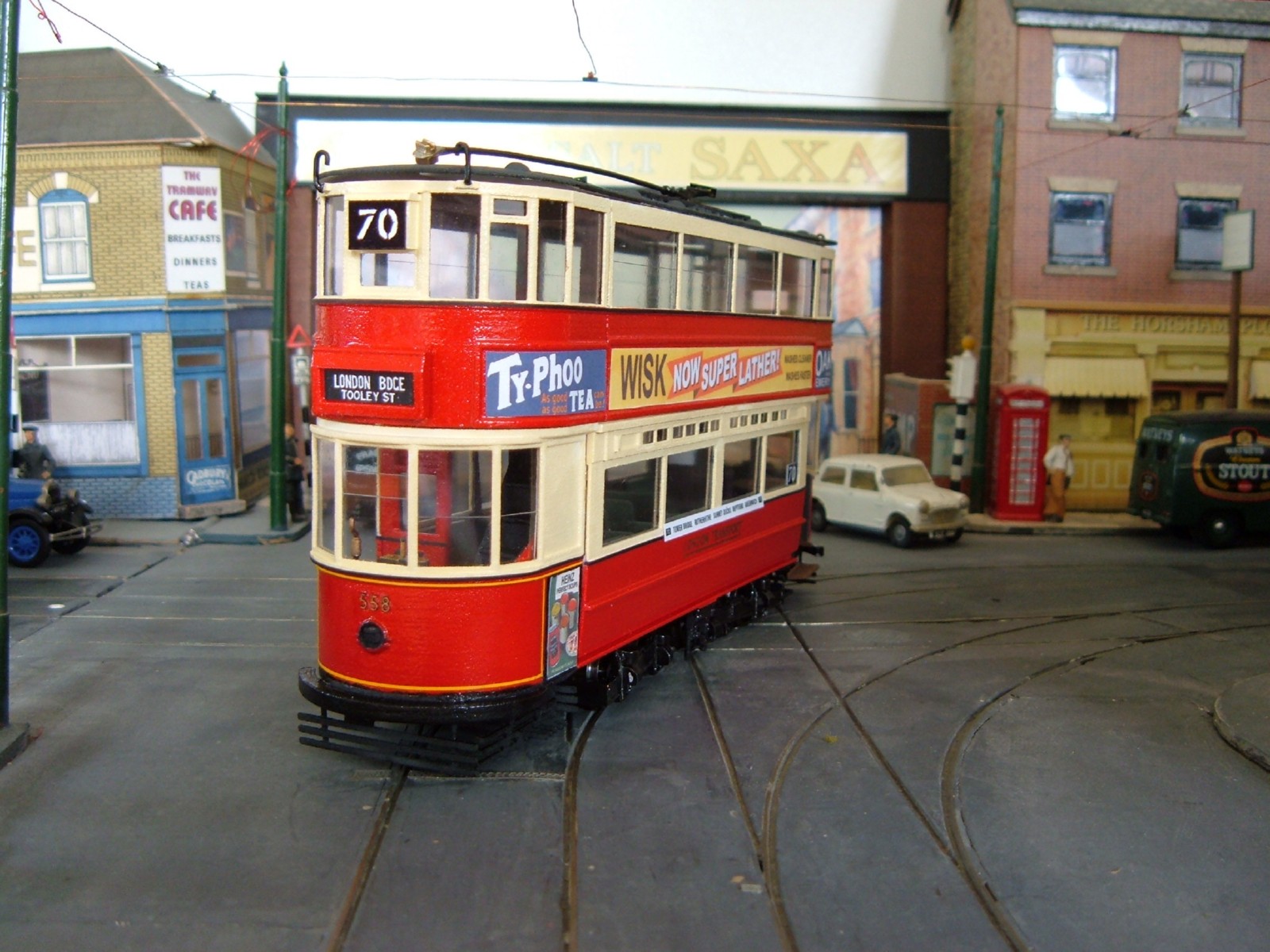

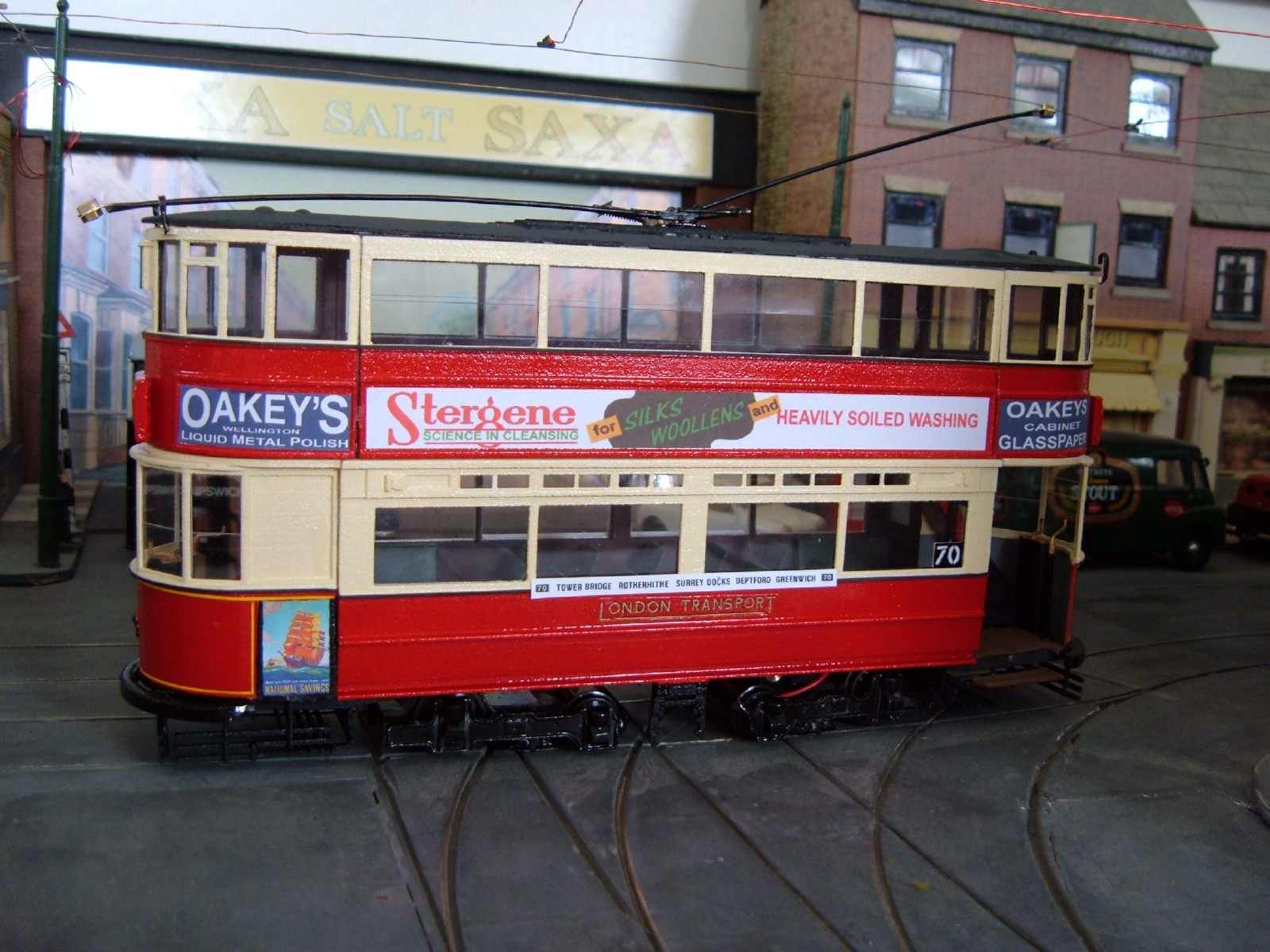

LONDON TRANSPORT E/1 MODEL TRAM FROM SHAPEWAYS
Updated 3rd July 2014

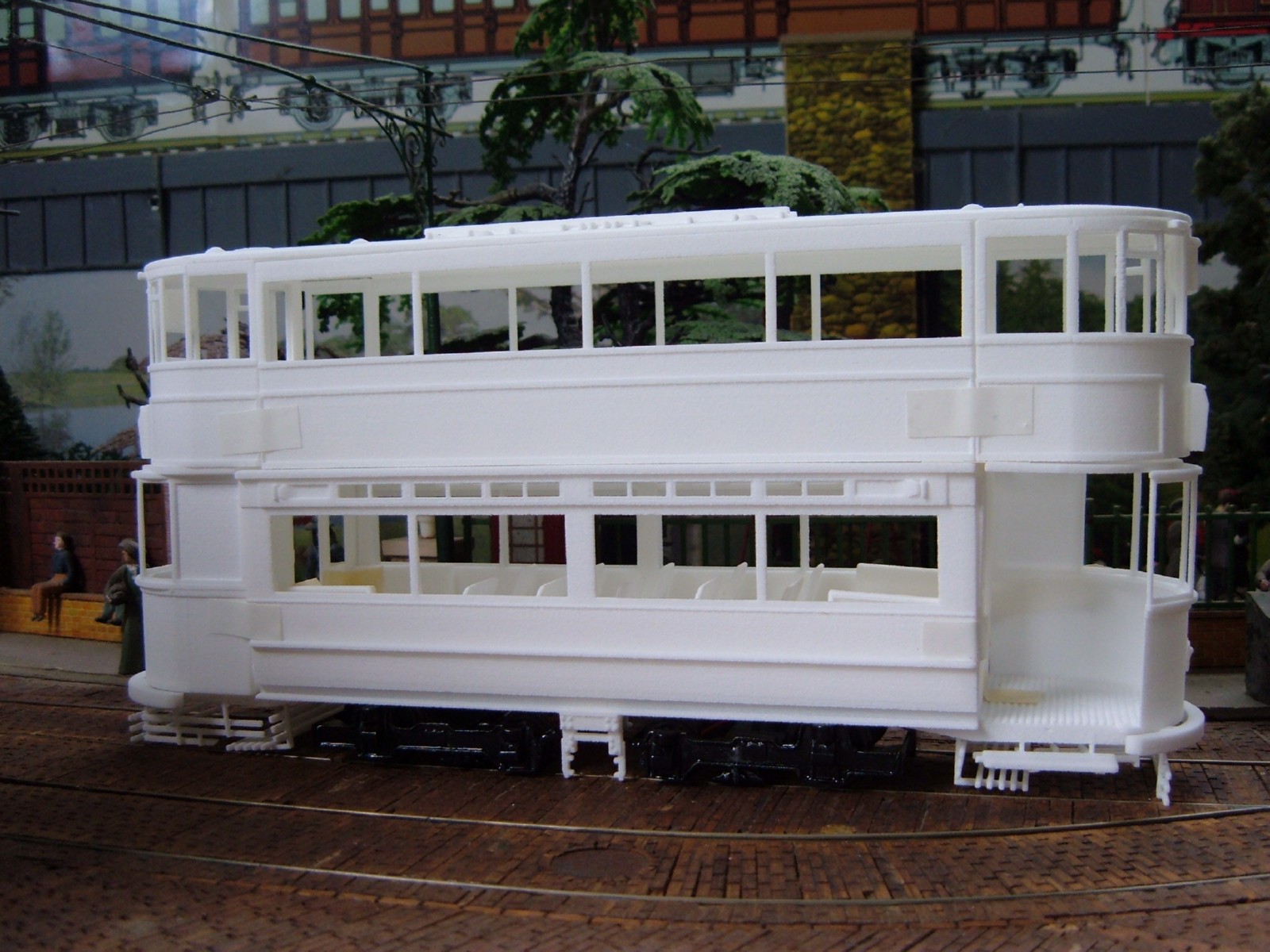

This will be the ultimate in a nylon plastic 3D model tramcar body kit, the result of a combination of the skills of ace 3D draughtsman
Tony Heselden, Terry Russell's knowledge of the construction of London trams and not forgetting Tony Tieuli's enthusiasm and exposure
on Facebook that has created sufficient interest for this 1/43rd scale 500 class London E/1 tramcar to go into production.
This is an '0' gauge model kit with NO alternative scales available or planned.
Terry Russell has built this model as it came out of the box with the only frills being his hand brakes, trucks and trolley poles from stock.
In addition he has made trolley hooks so the trolleys can be stowed [there are four].

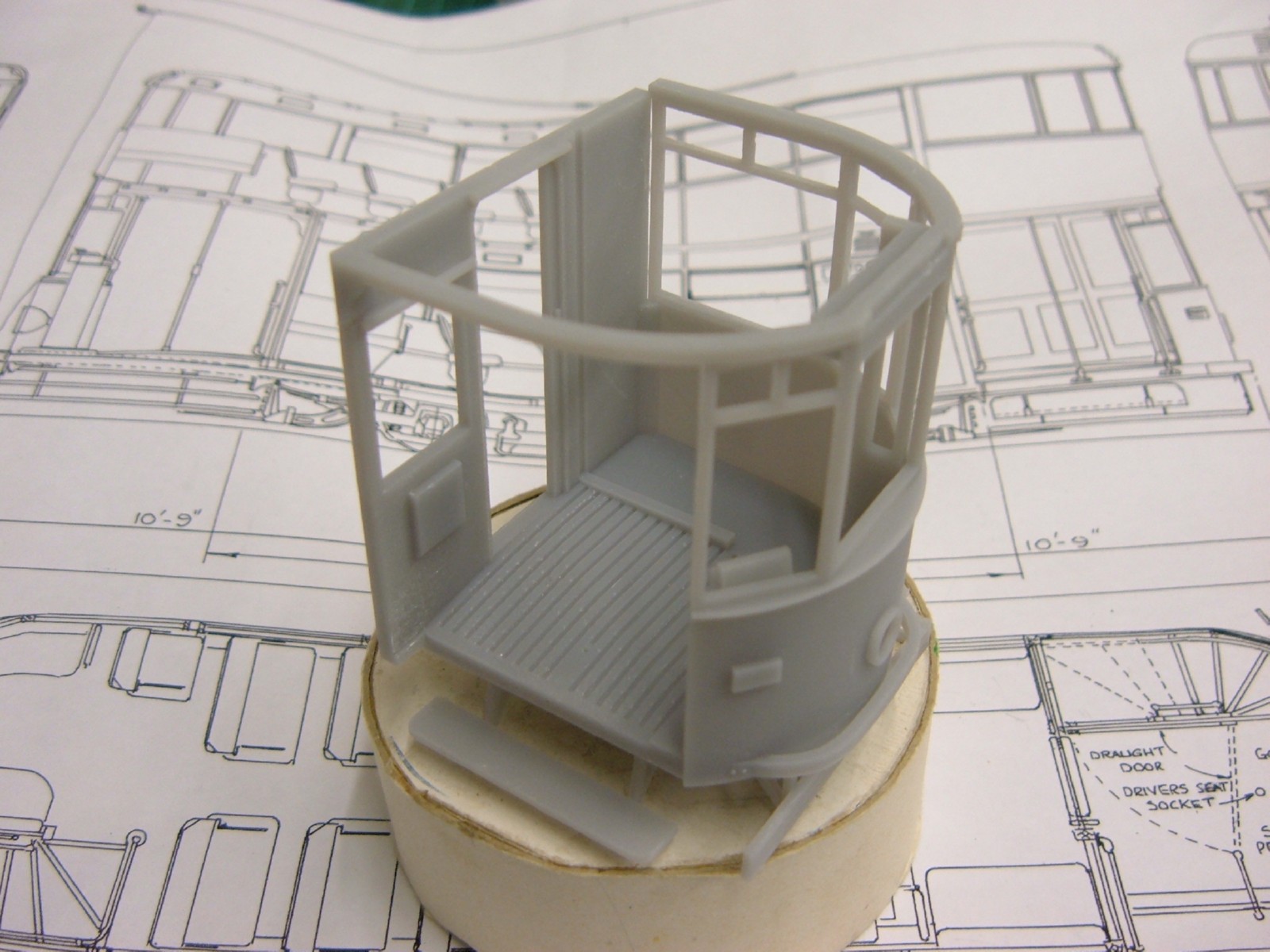

Click on the adjacent picture to access a sequence of pictures showing this model being built.
The complexity of taxes, carriage and exchange rates for different countries makes it necessary to order the body kit direct from
www.shapeways.com where the amount payable will be calculated for you. There are
three items to buy: body, roof and interior seating. UK purchasers will find the sum payable is €198.44 before proceeding to
the checkout. That works out to around £159.00. Your order with Shapeways should look something like this
image.
If you want a non-working model, contact Terry Russell for advice of what additional items to buy.

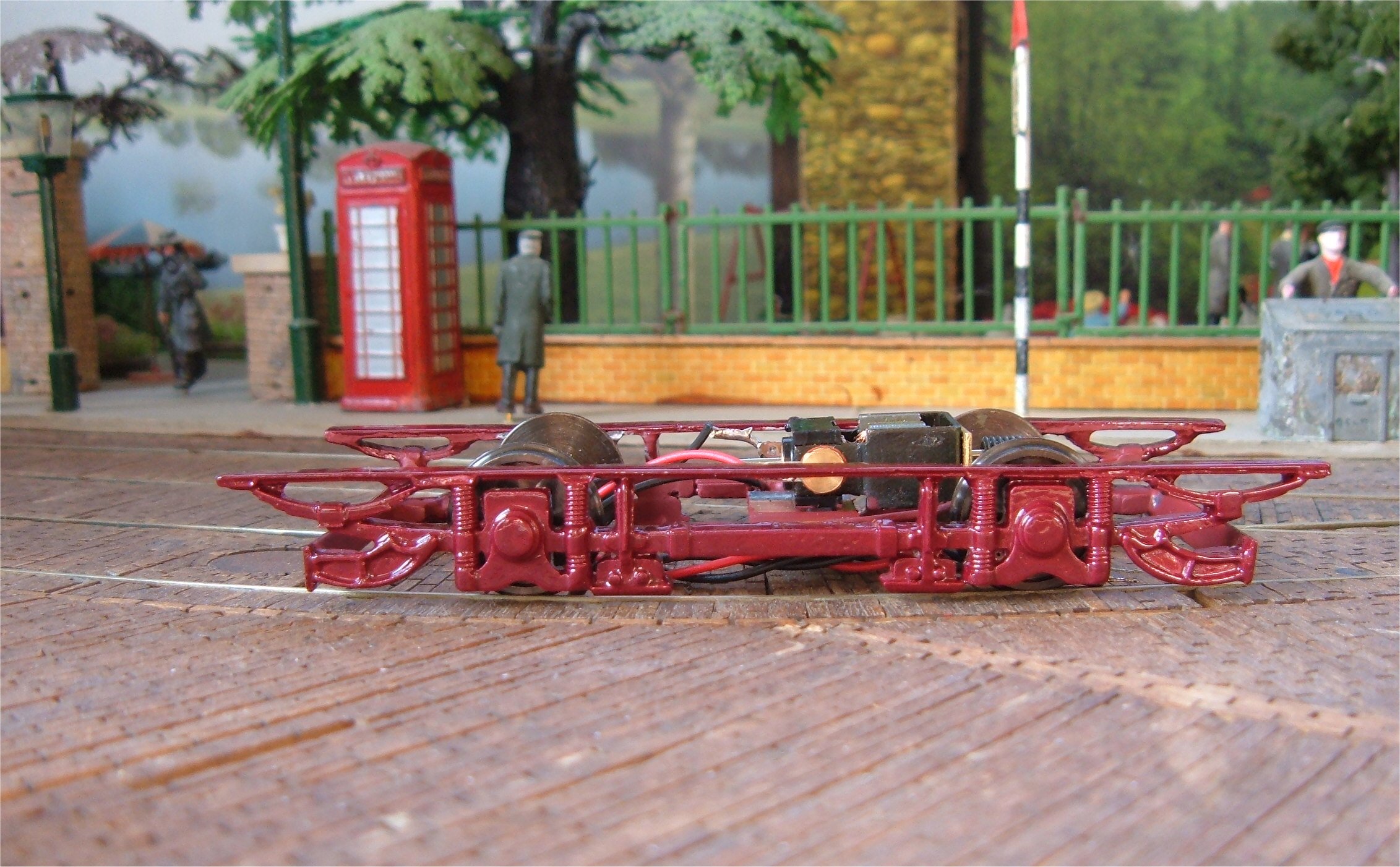

For a working model you will need to order from Terry Russell Trams the following:
C5 Truck Set Bogie for overhead/2-rail/DCC, HB1 Hand Brake 1 pair, DT2 Trolley Pole Qty 2, TF1 Two LONDON TRANSPORT and four 0-9 gold/black numerals and
a Advertisements/Destination/Route Board Pack. Order these items using the 'Pay Now' button below will cost £179.76 including P&P.

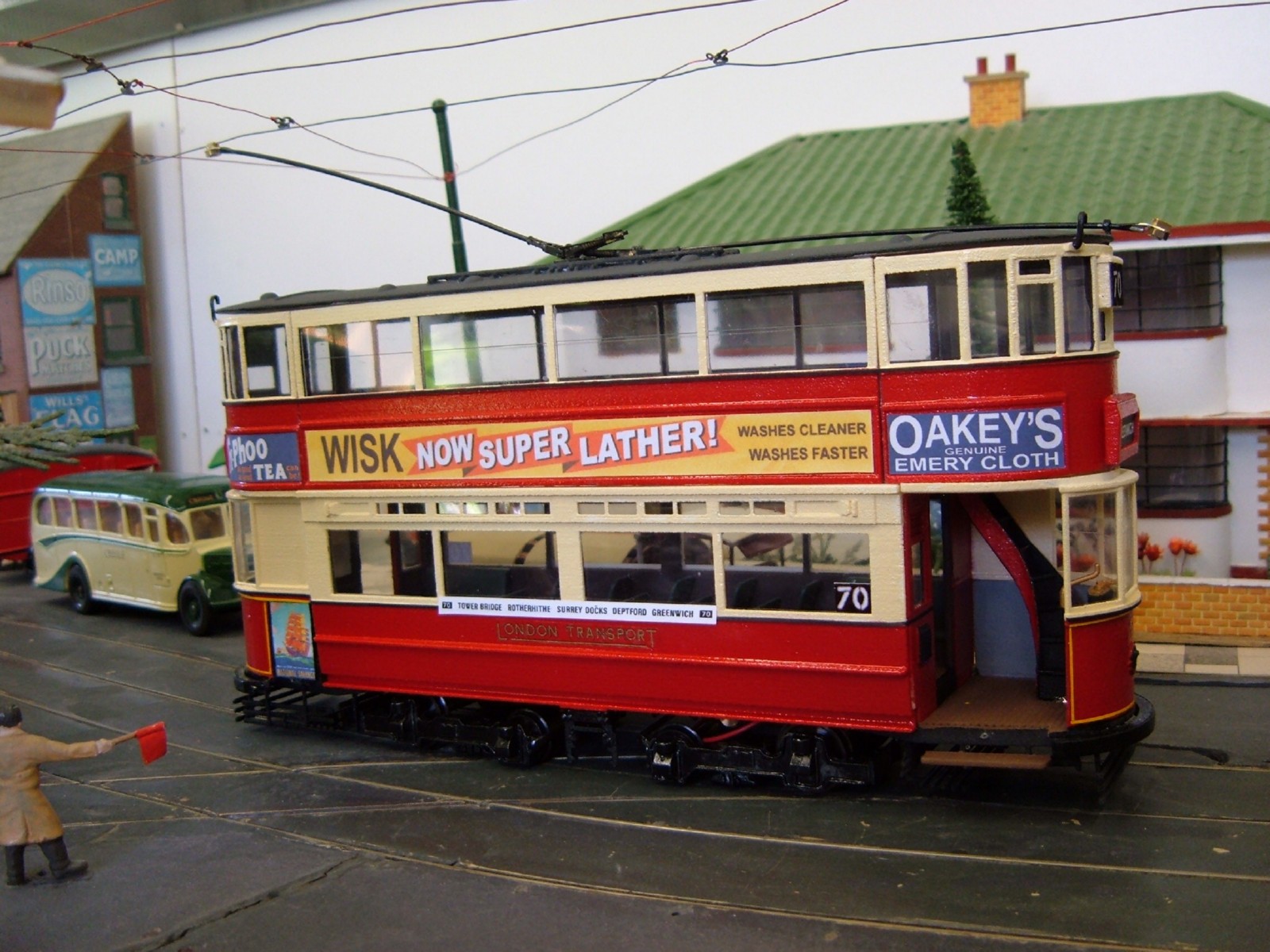

Dave Wilsher produced the selection of advertisements and included one for WISK; just right for a docklands route!

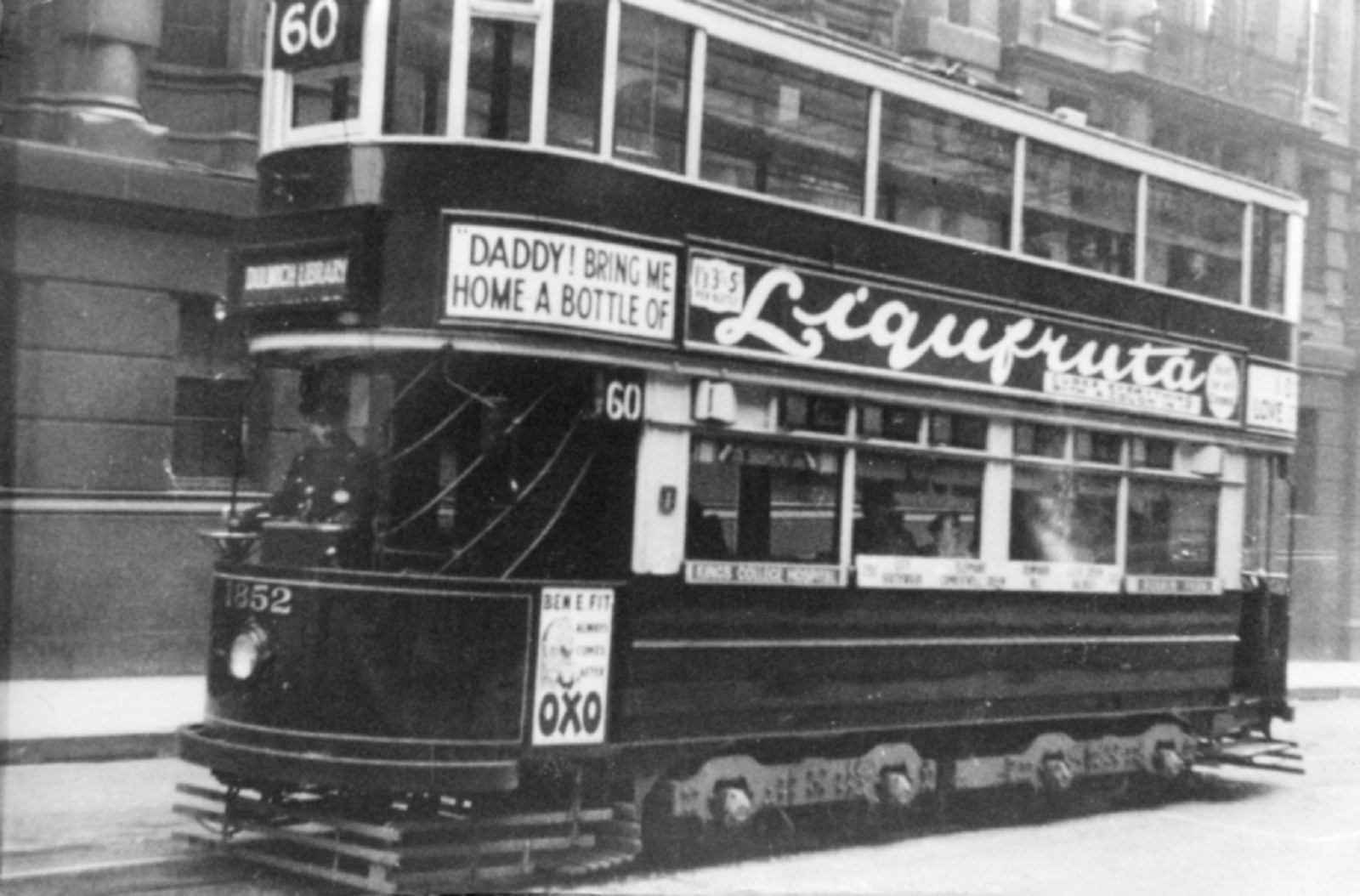

The E/1 body shell was also used for car #1852 fitted with equal wheel 4 motor trucks and was classified HR/1, [Click on the camera icon for
prototype pictures]. To model this car, specify the HR/2 truck set [Ref C7] on your order. The truck substitution doesn't alter the
pricing. With acknowledgments to Colin Withey for this information.
|
To order Terry Russell Trams accessories for the E/1 model tram from Shapeways, please use the
specially crafted 'Pay Now' button to the left. Payment can be made using your Credit/Debit Card or PayPal. The 'Note to Seller'
feature should be used to substitute the C7 Truck Set [if modelling car #1852] instead of the normally supplied C5 Truck Set. |
